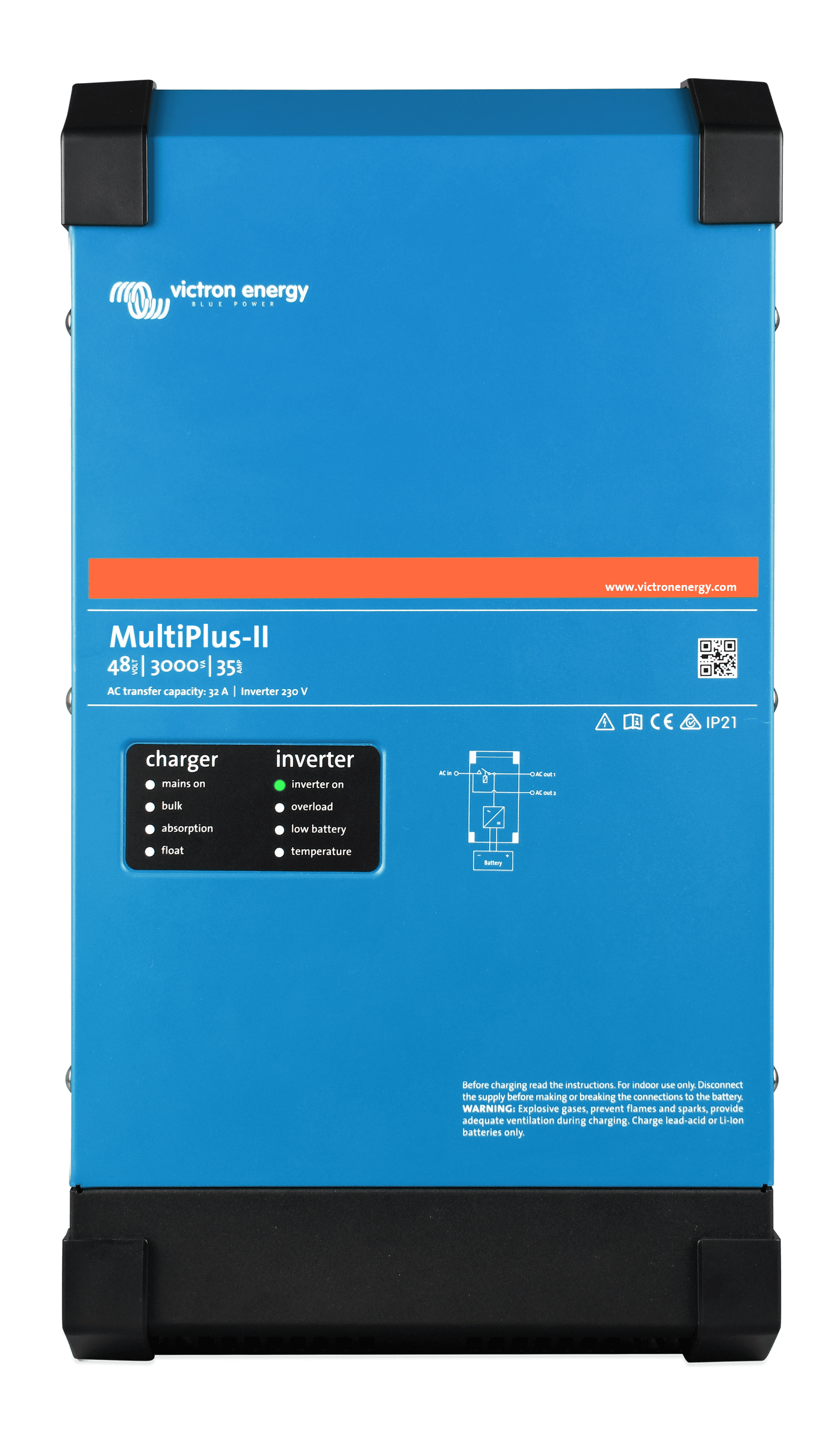

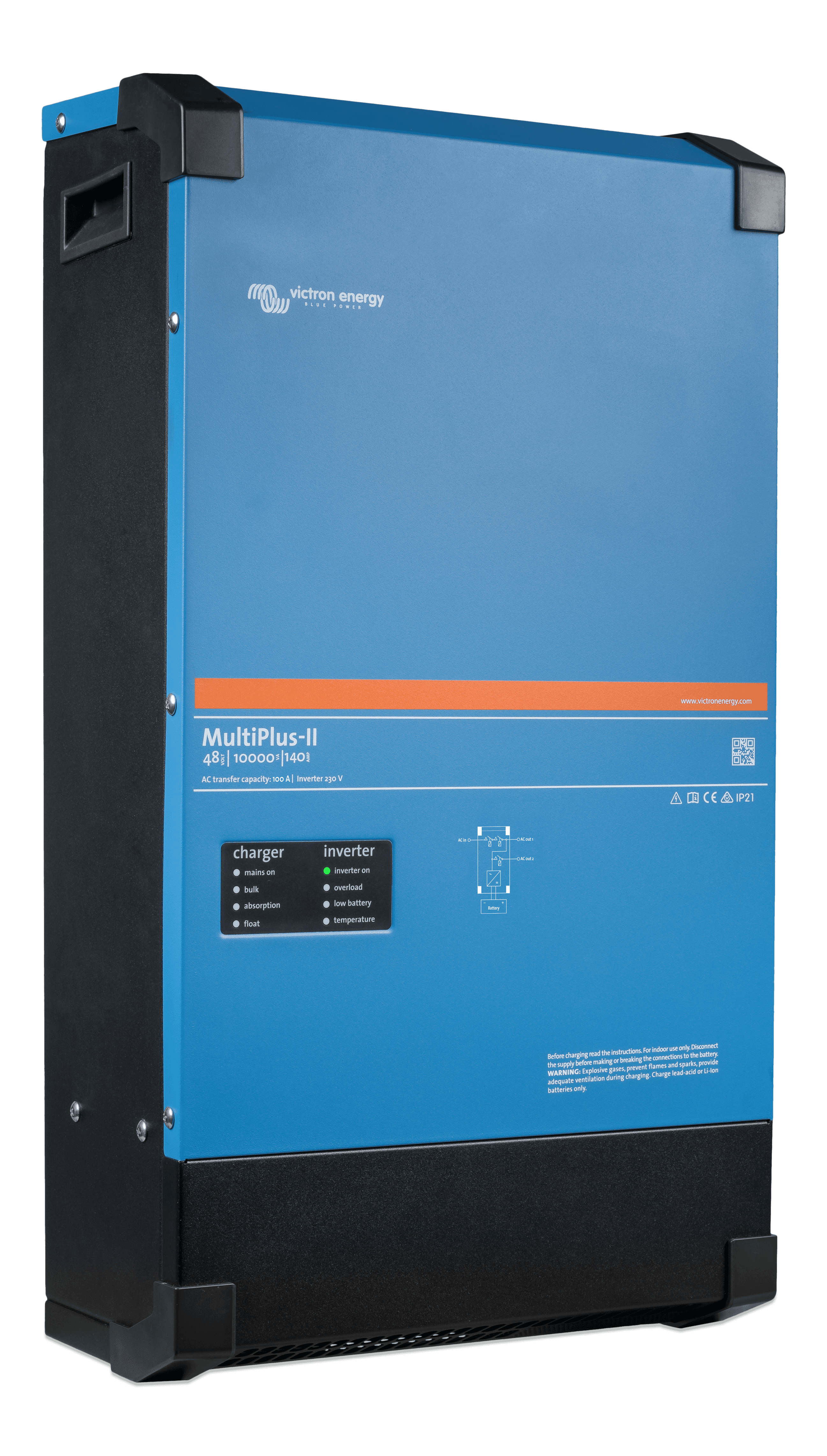

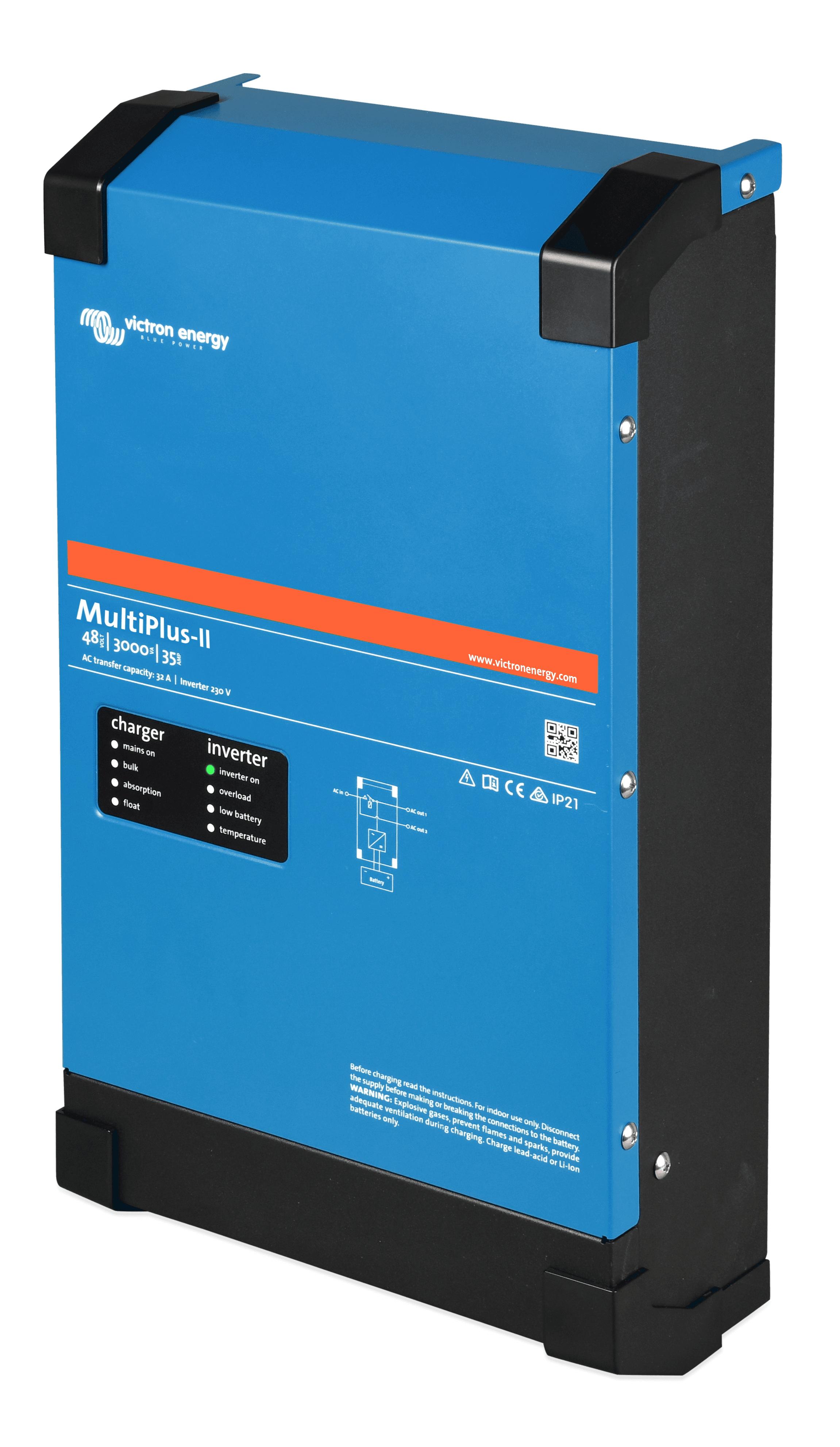

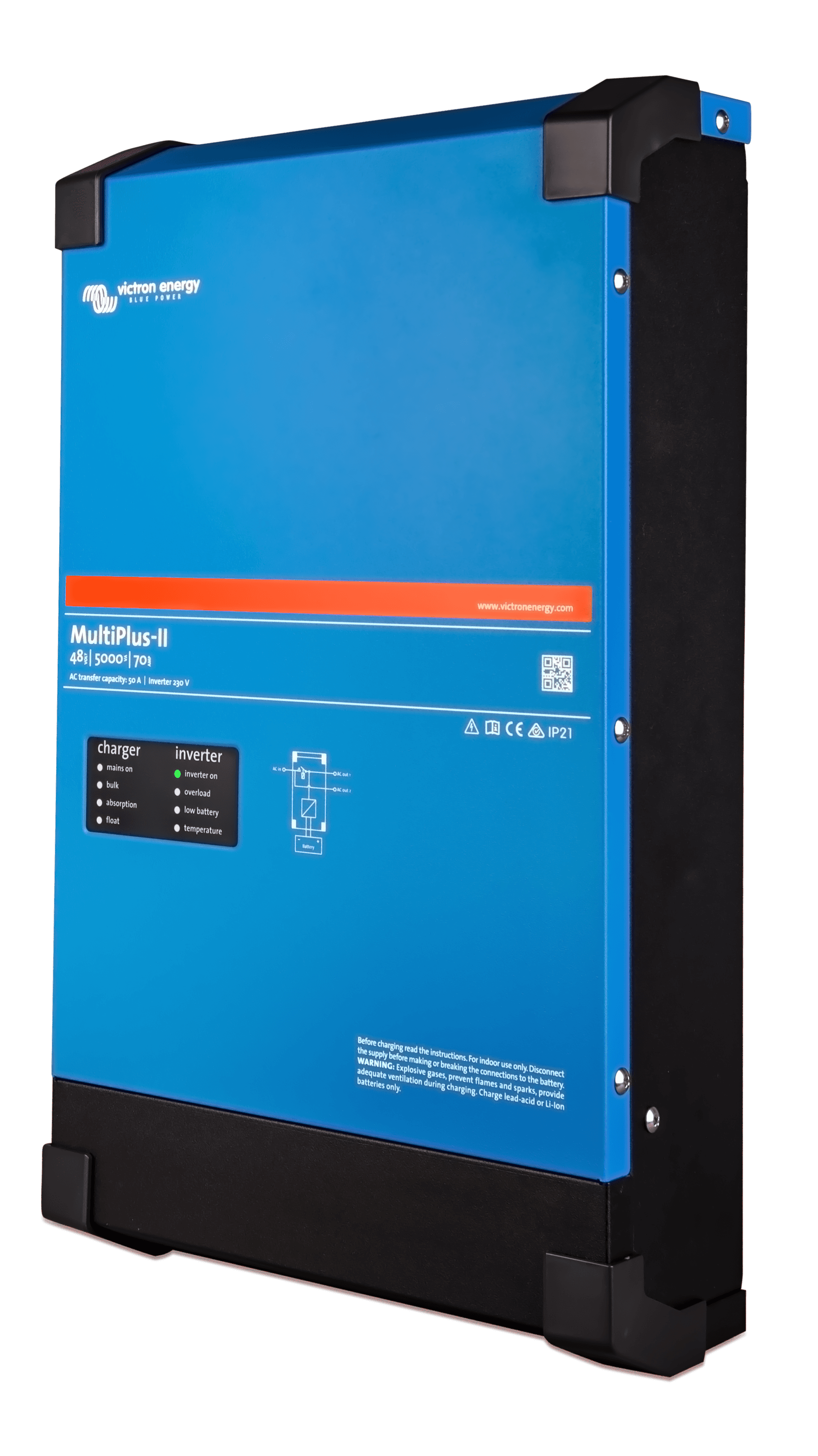

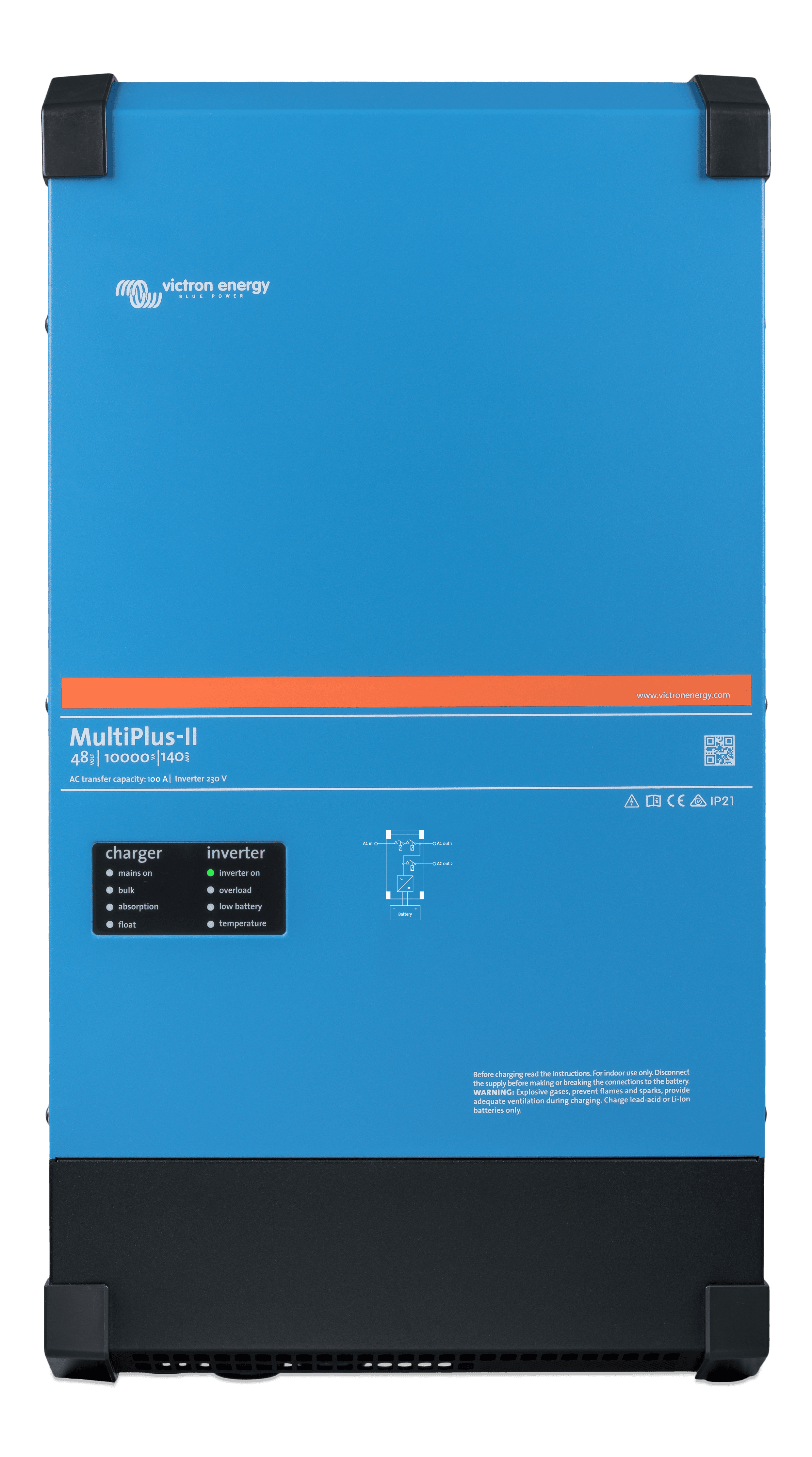

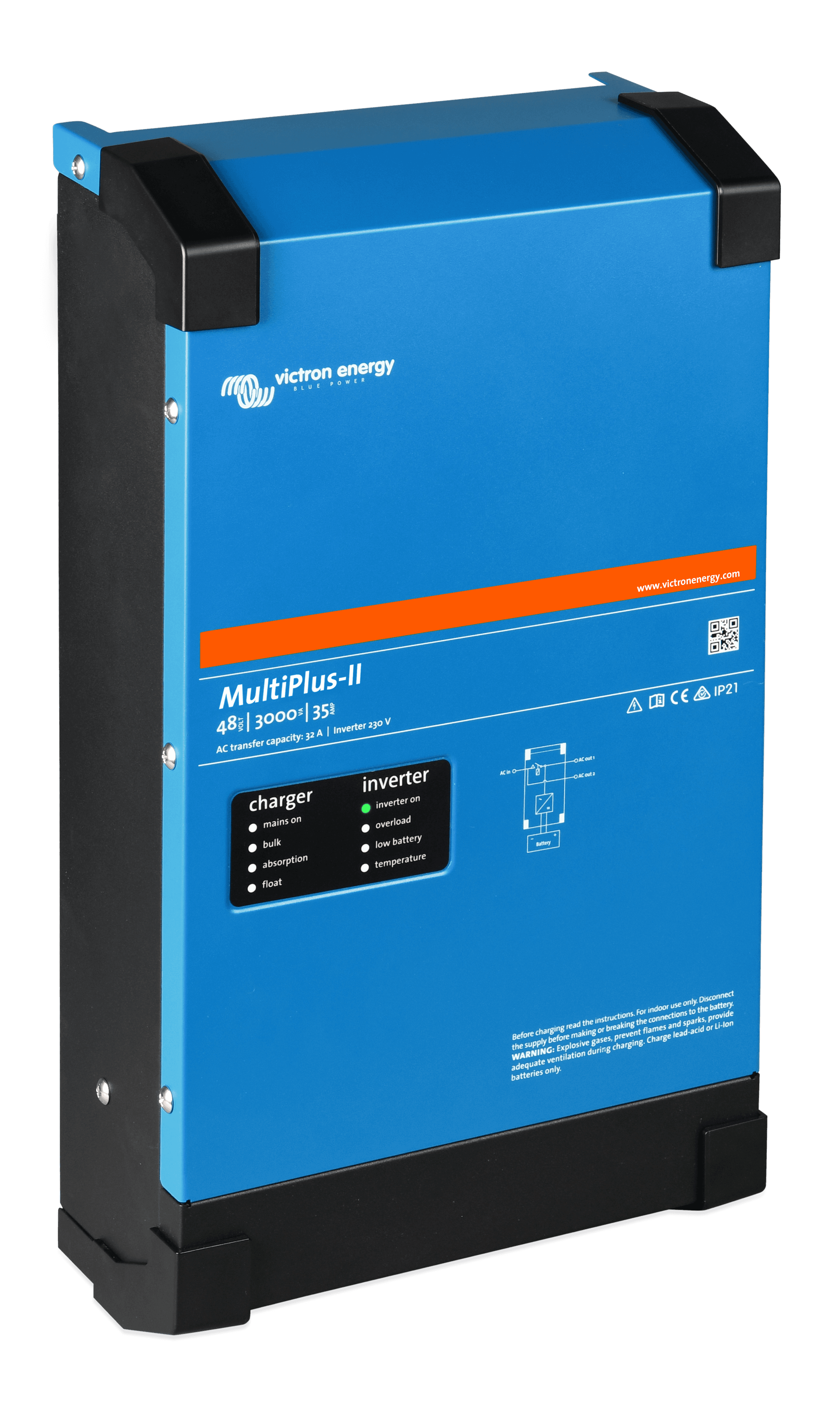

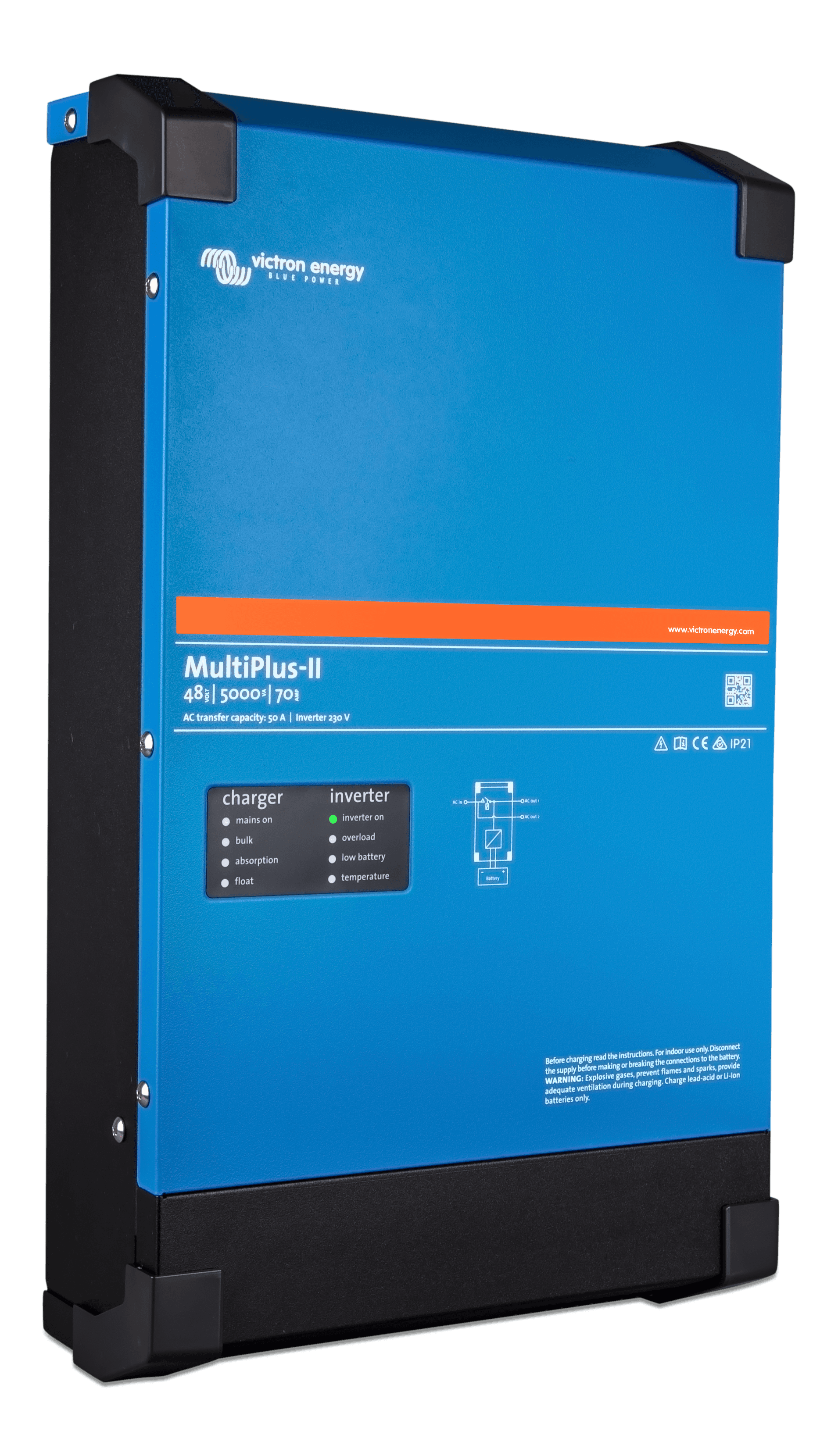

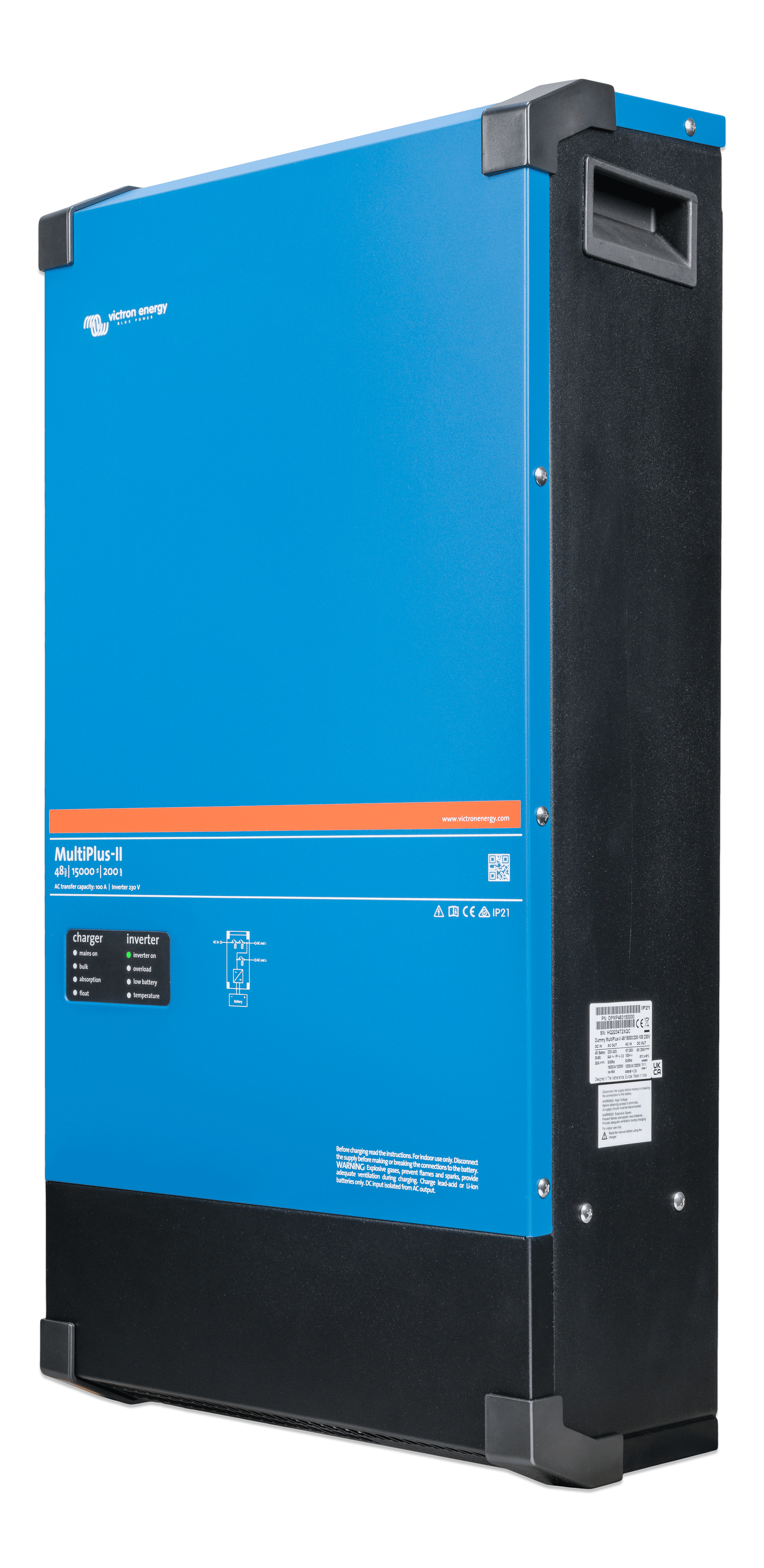

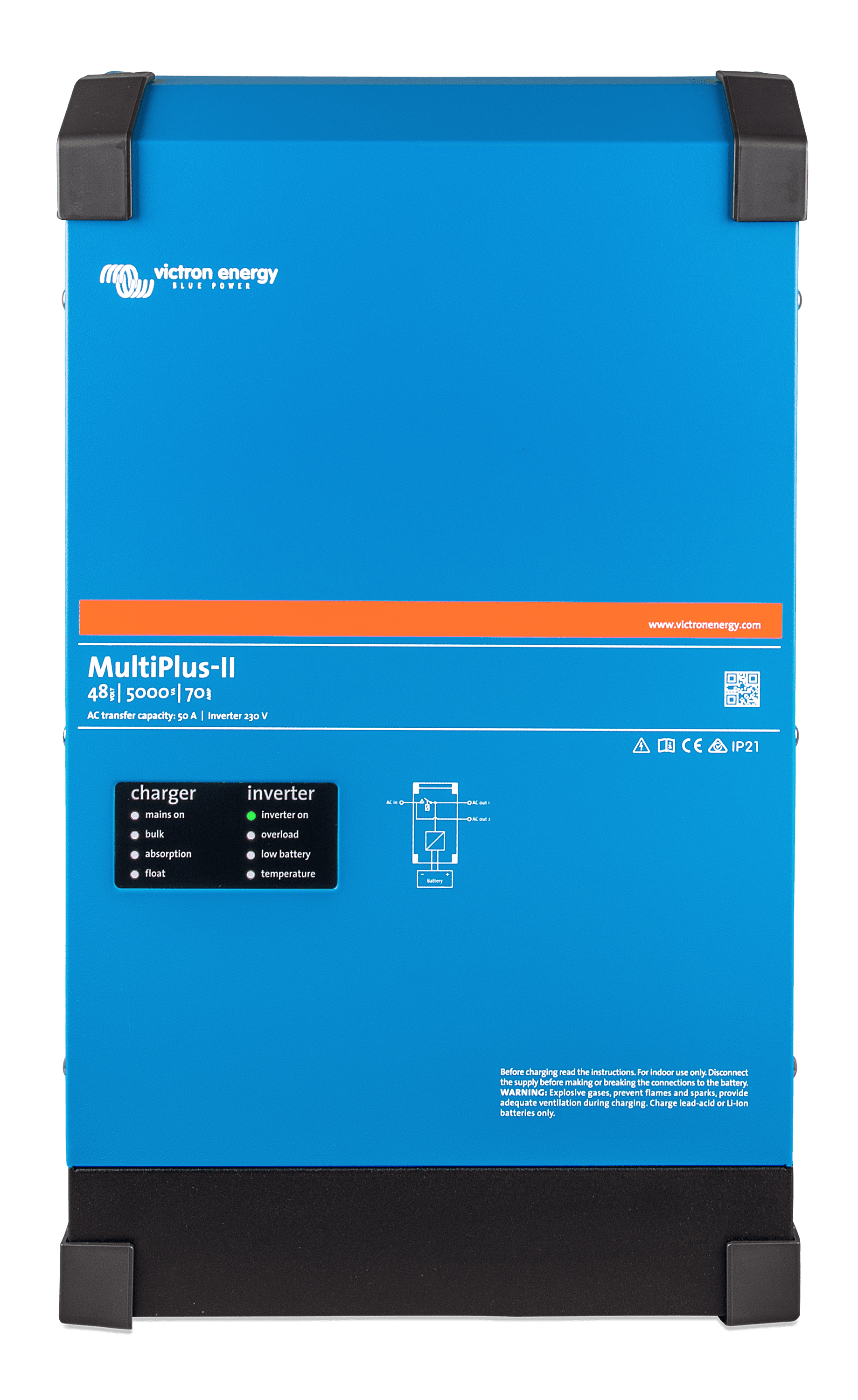

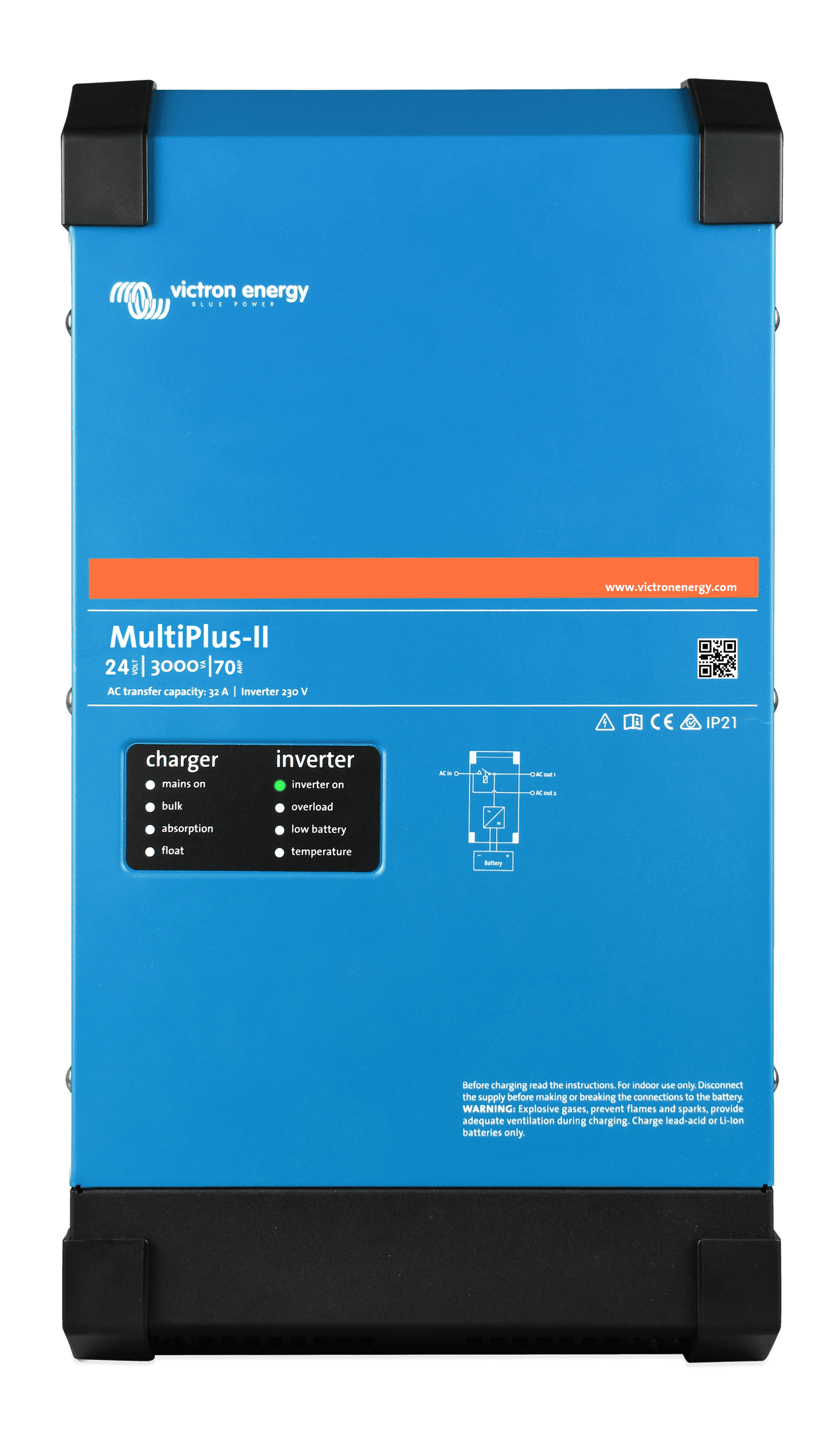

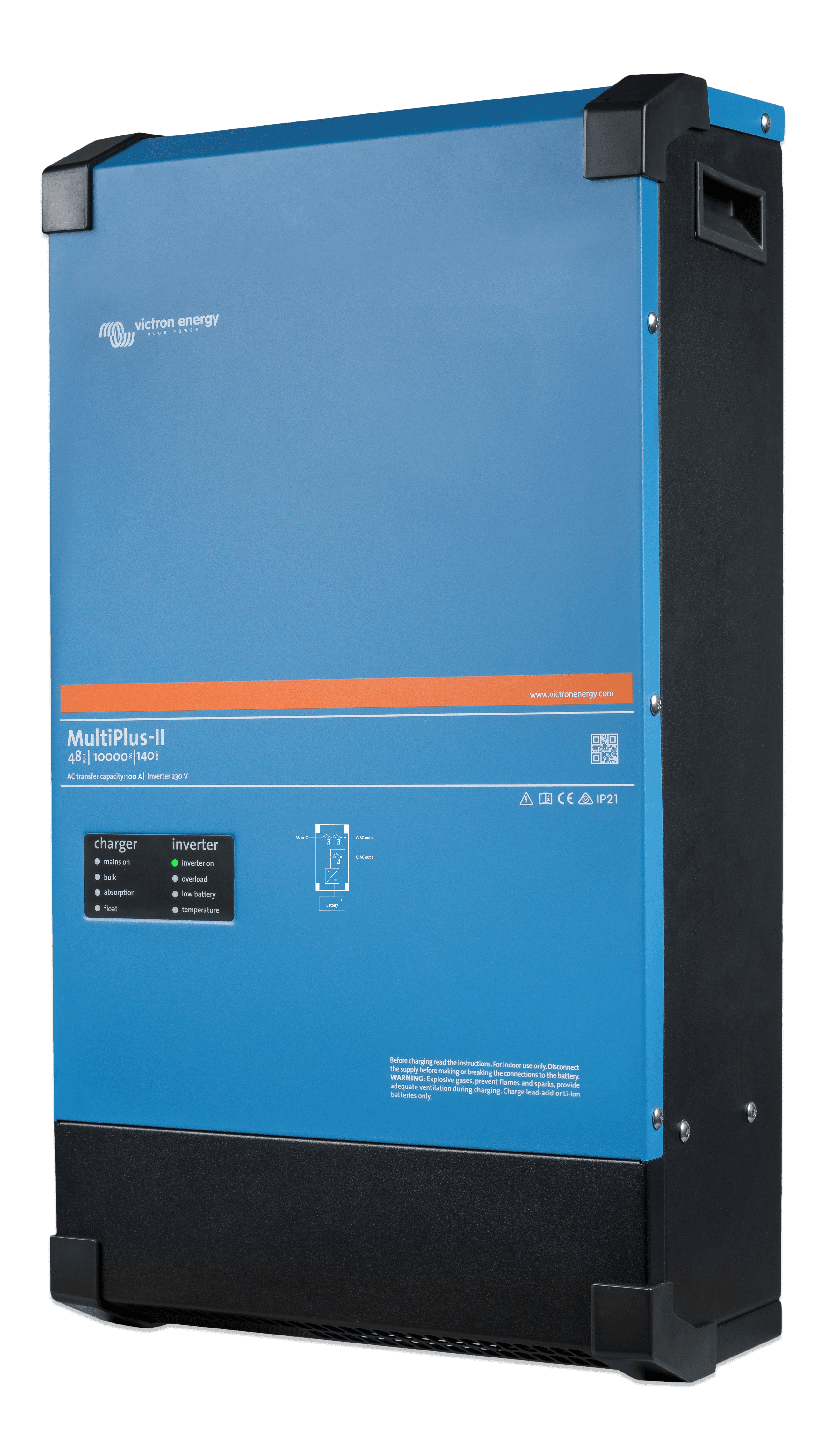

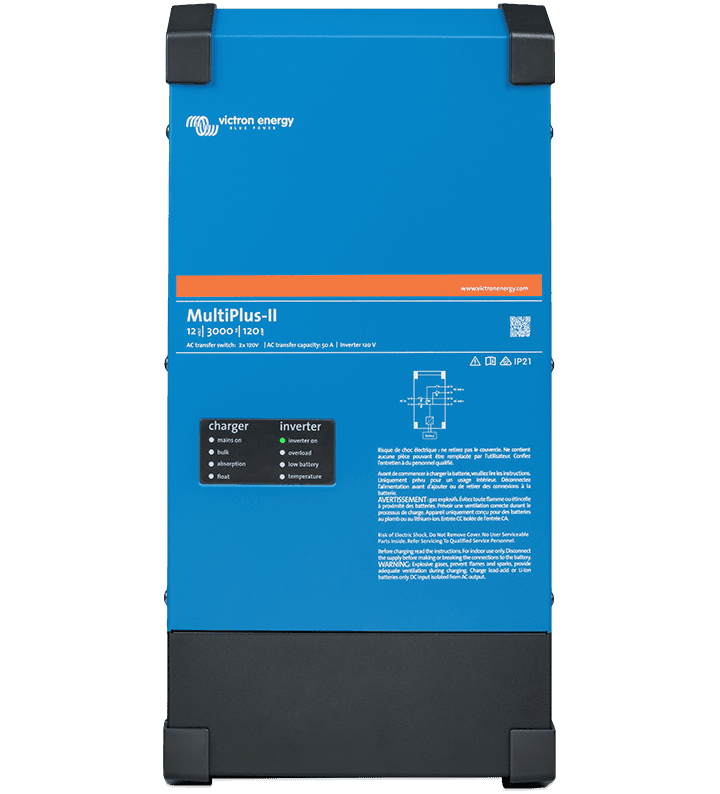

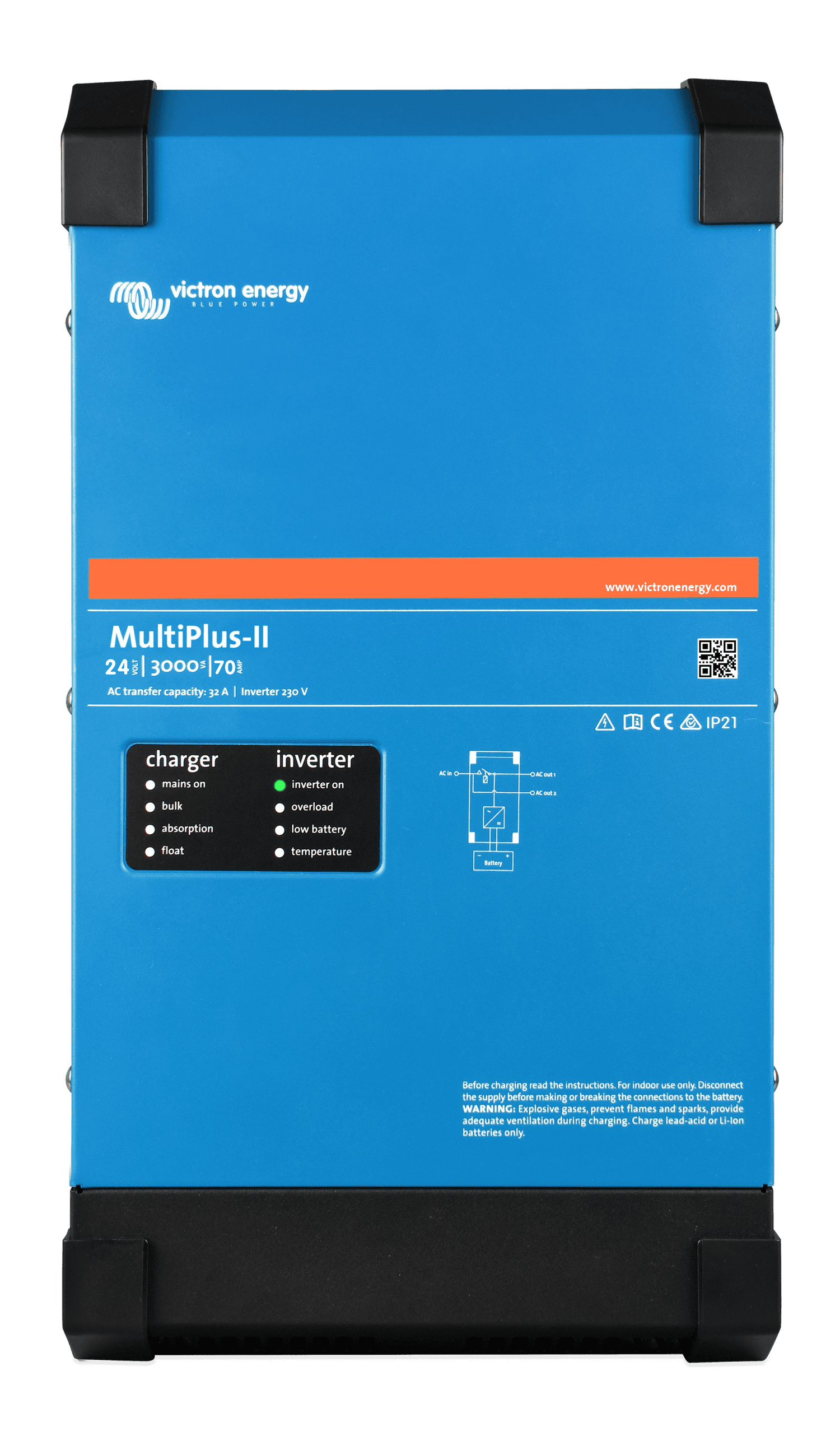

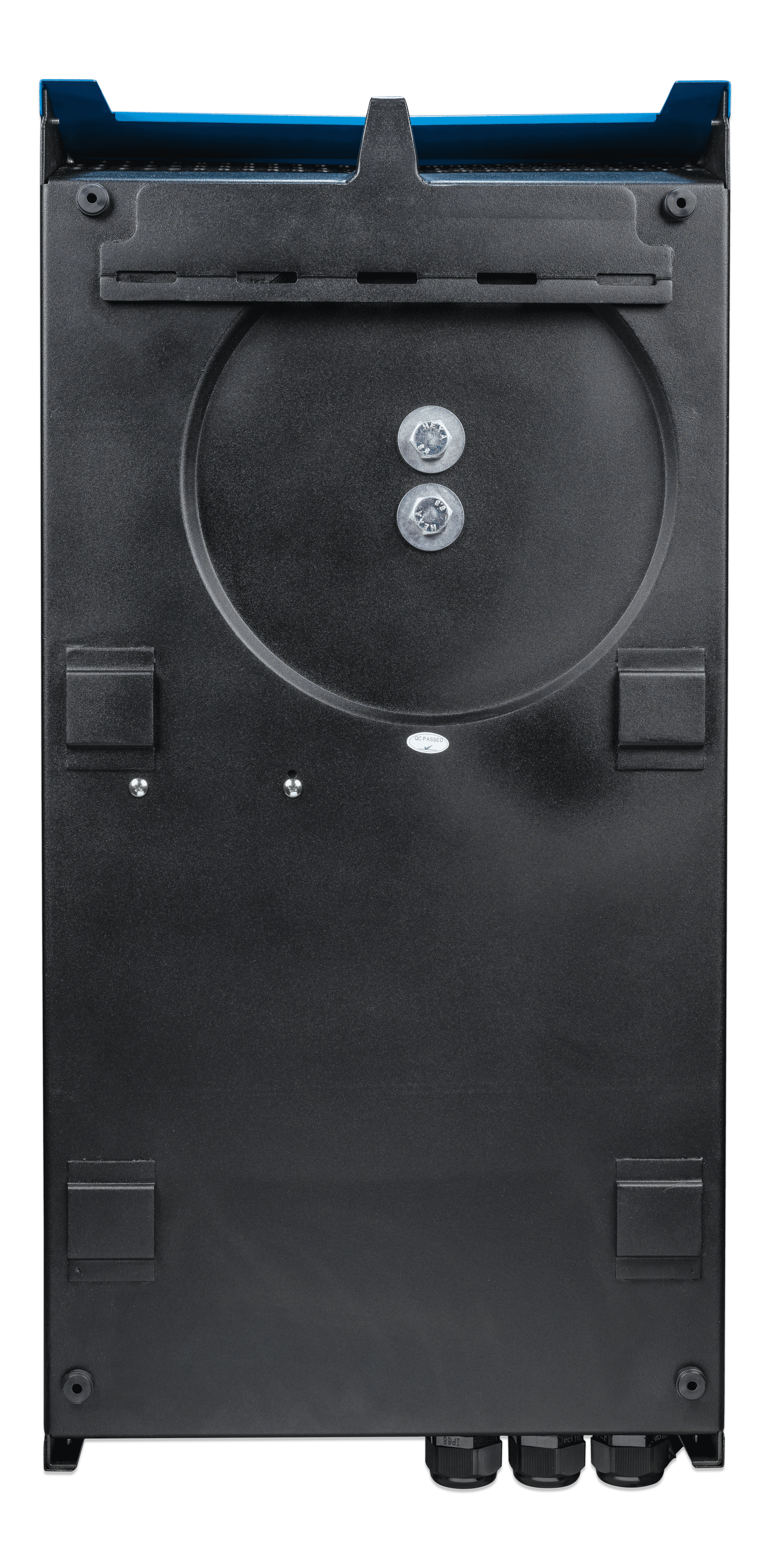

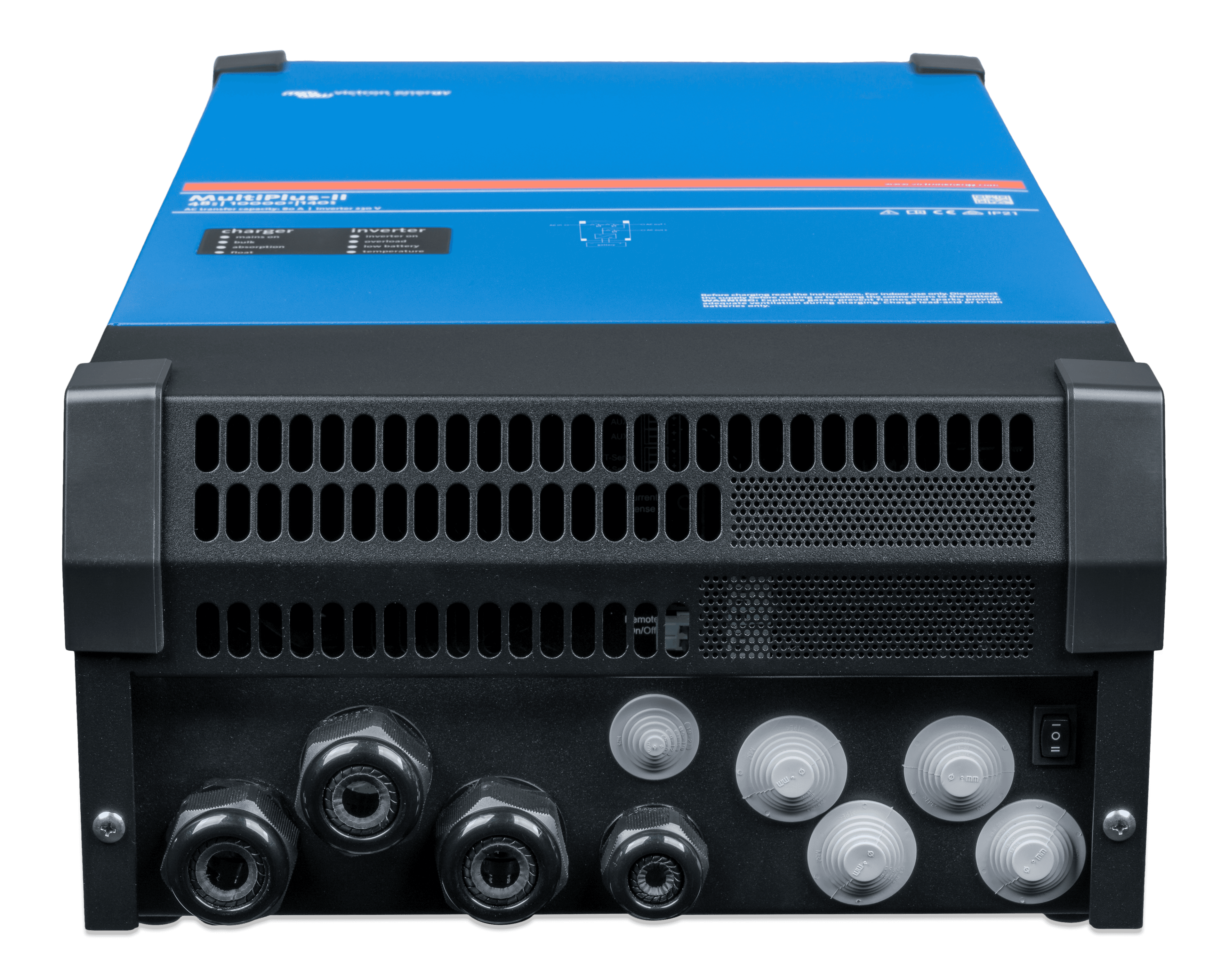

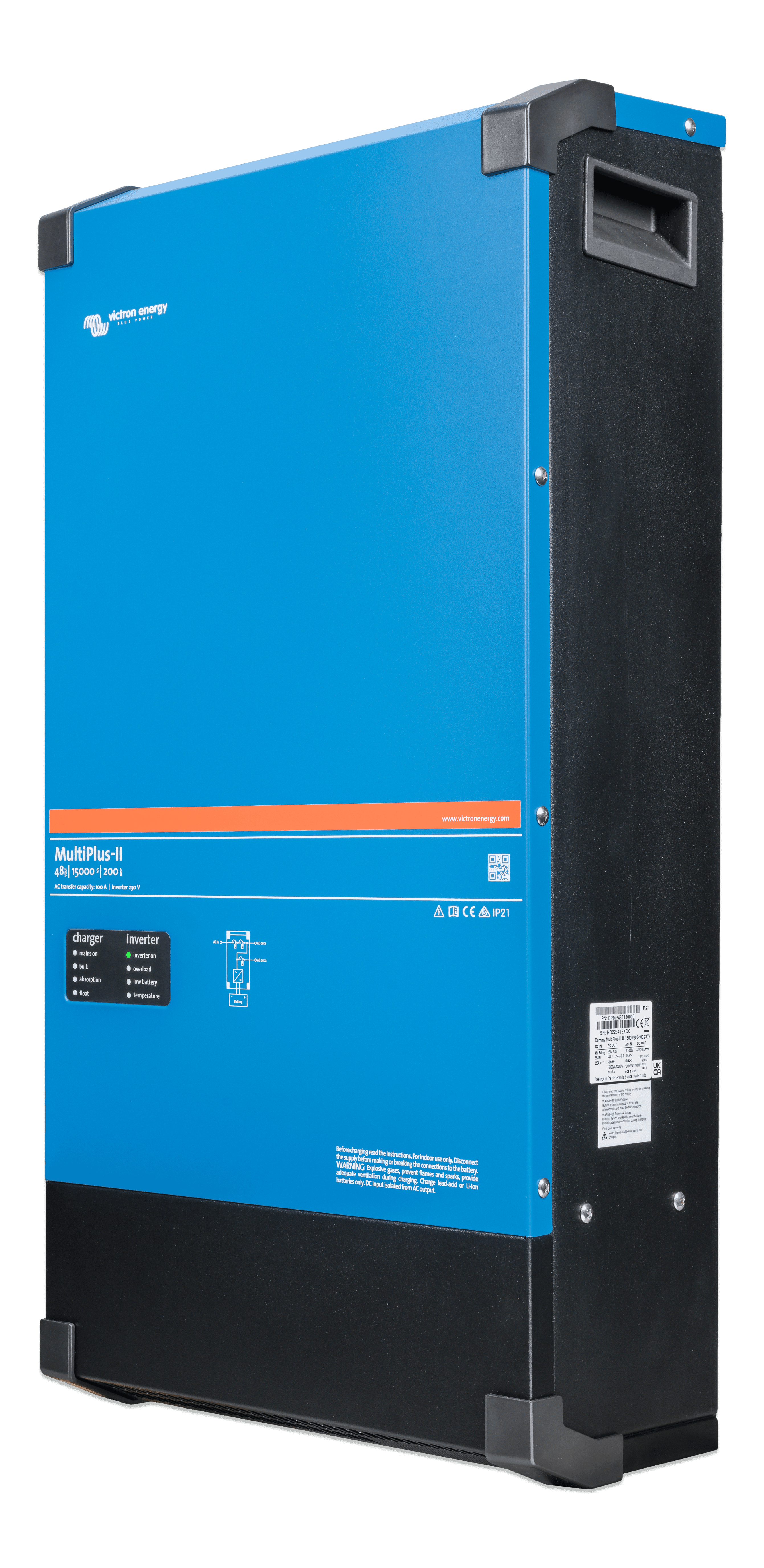

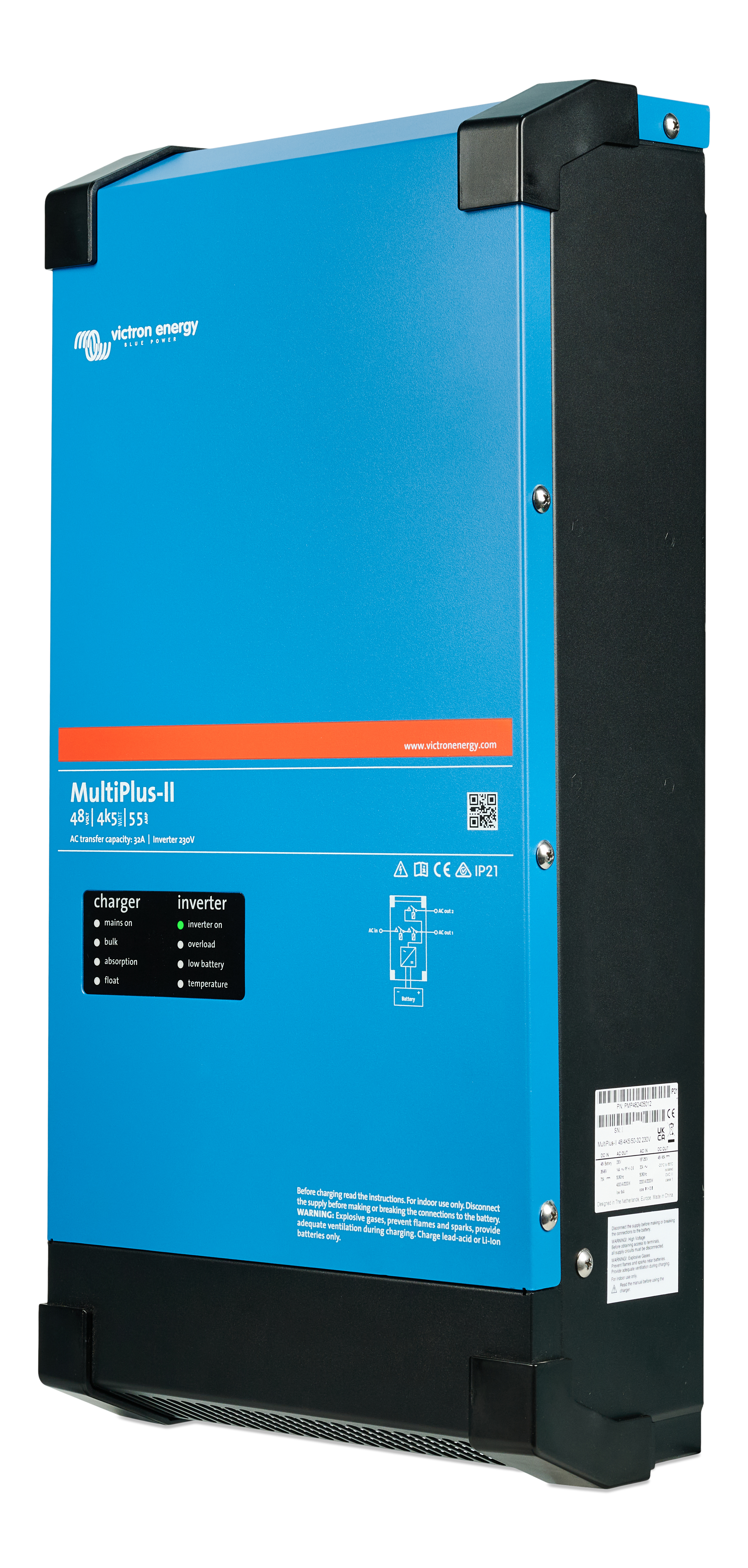

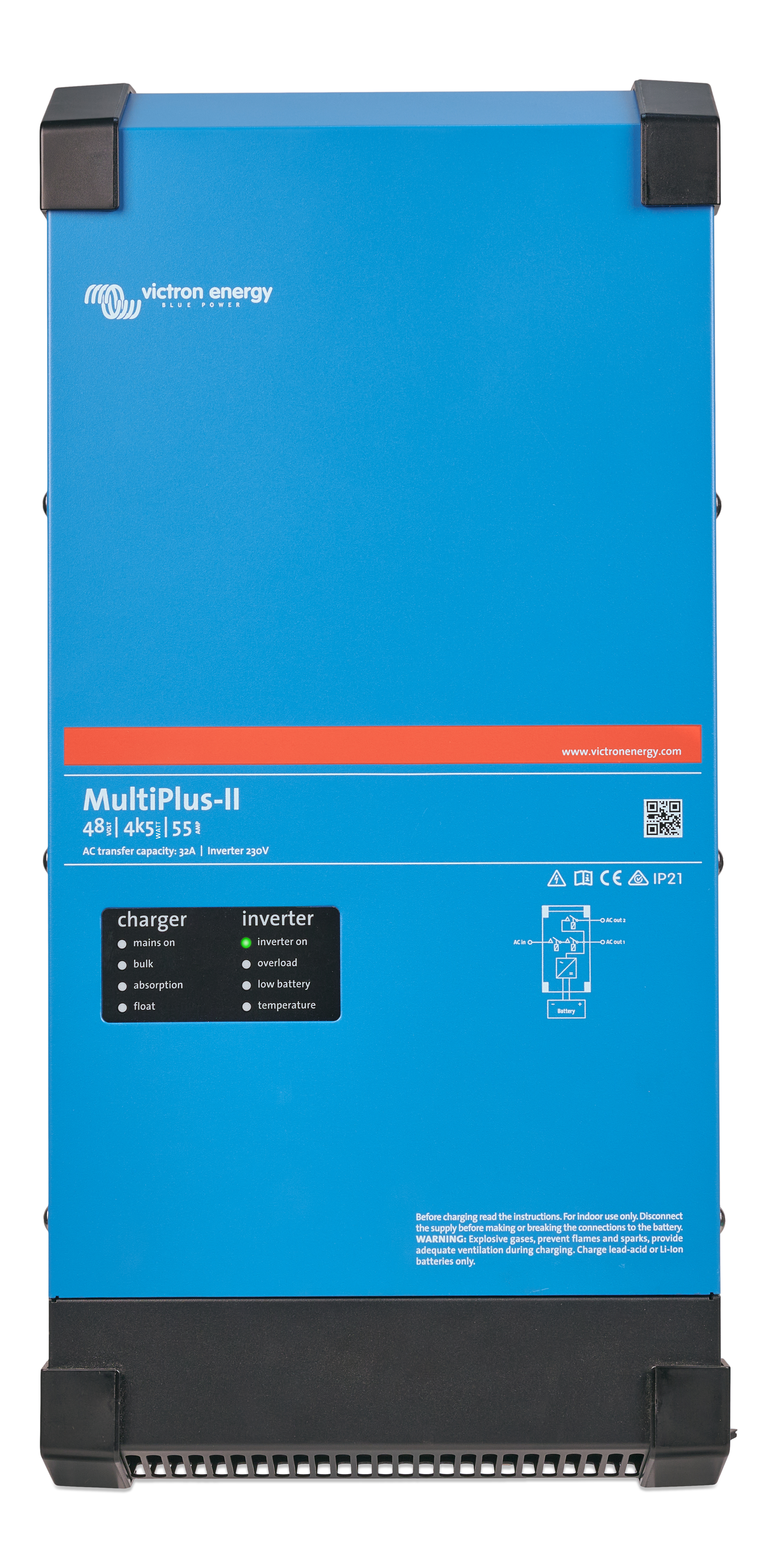

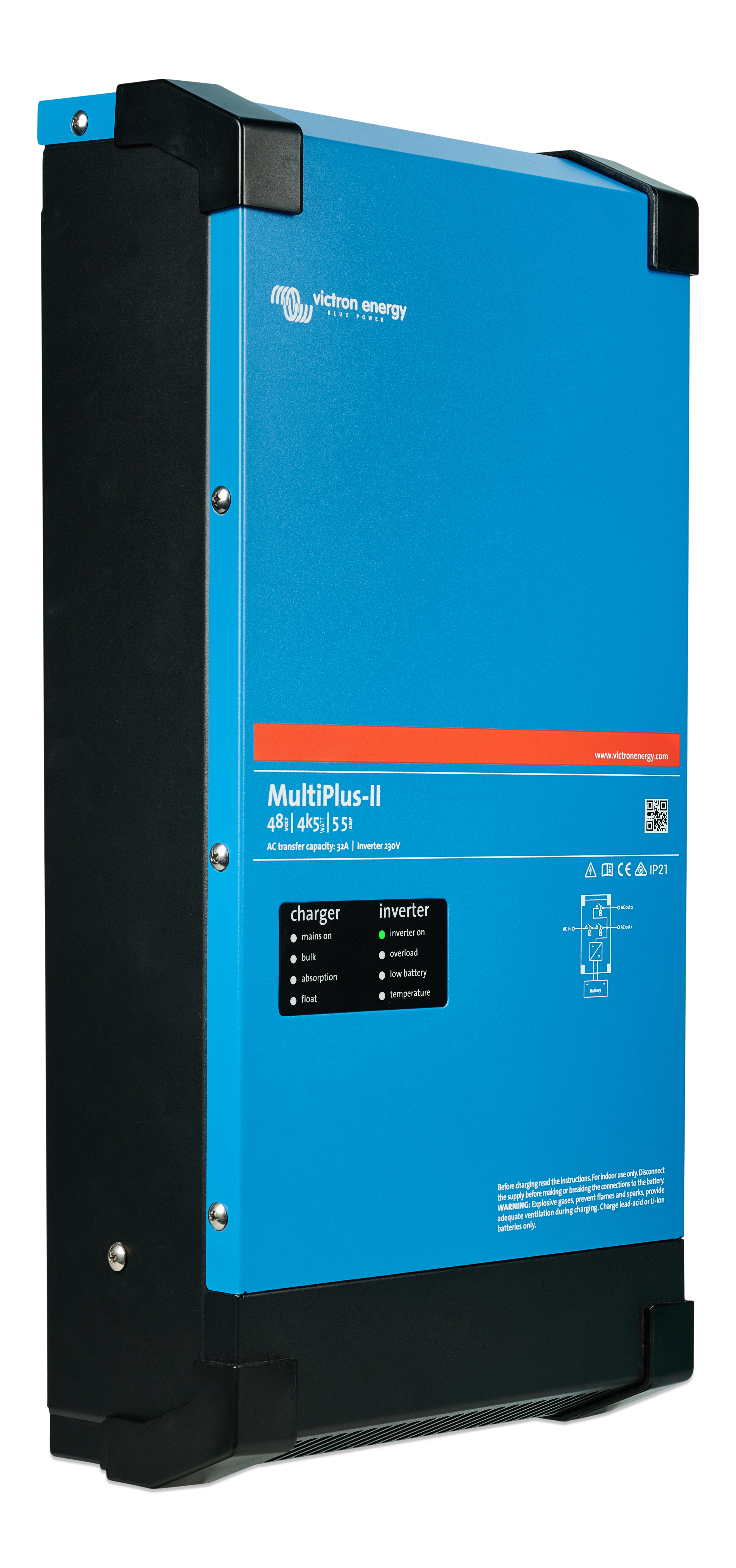

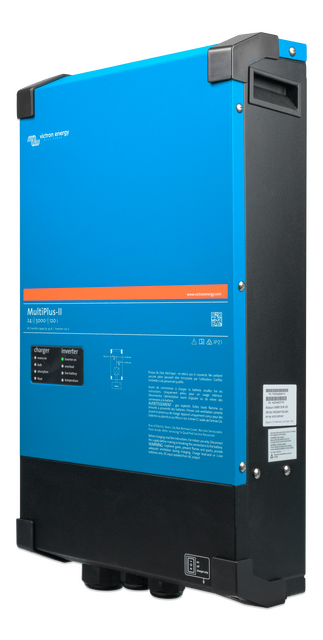

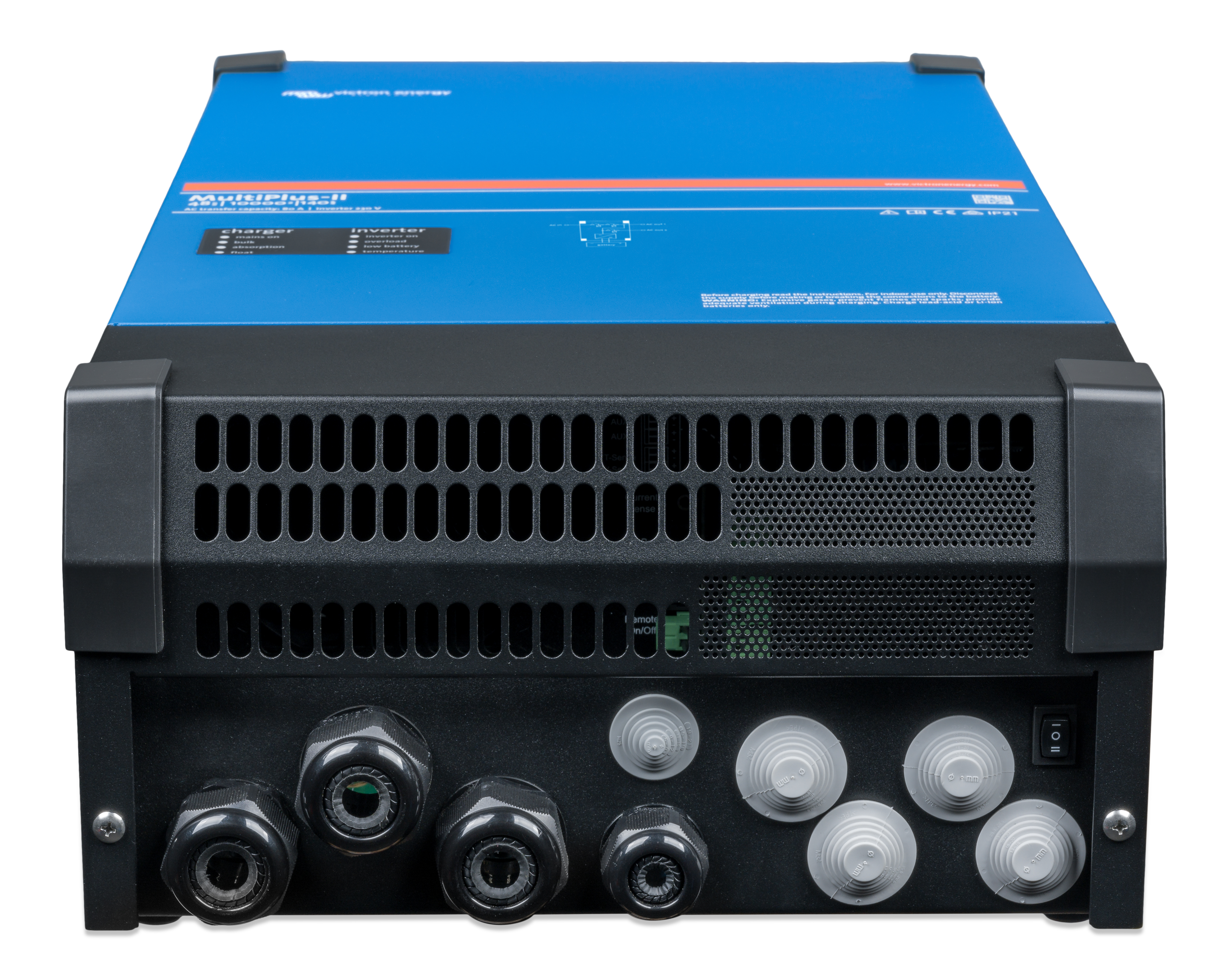

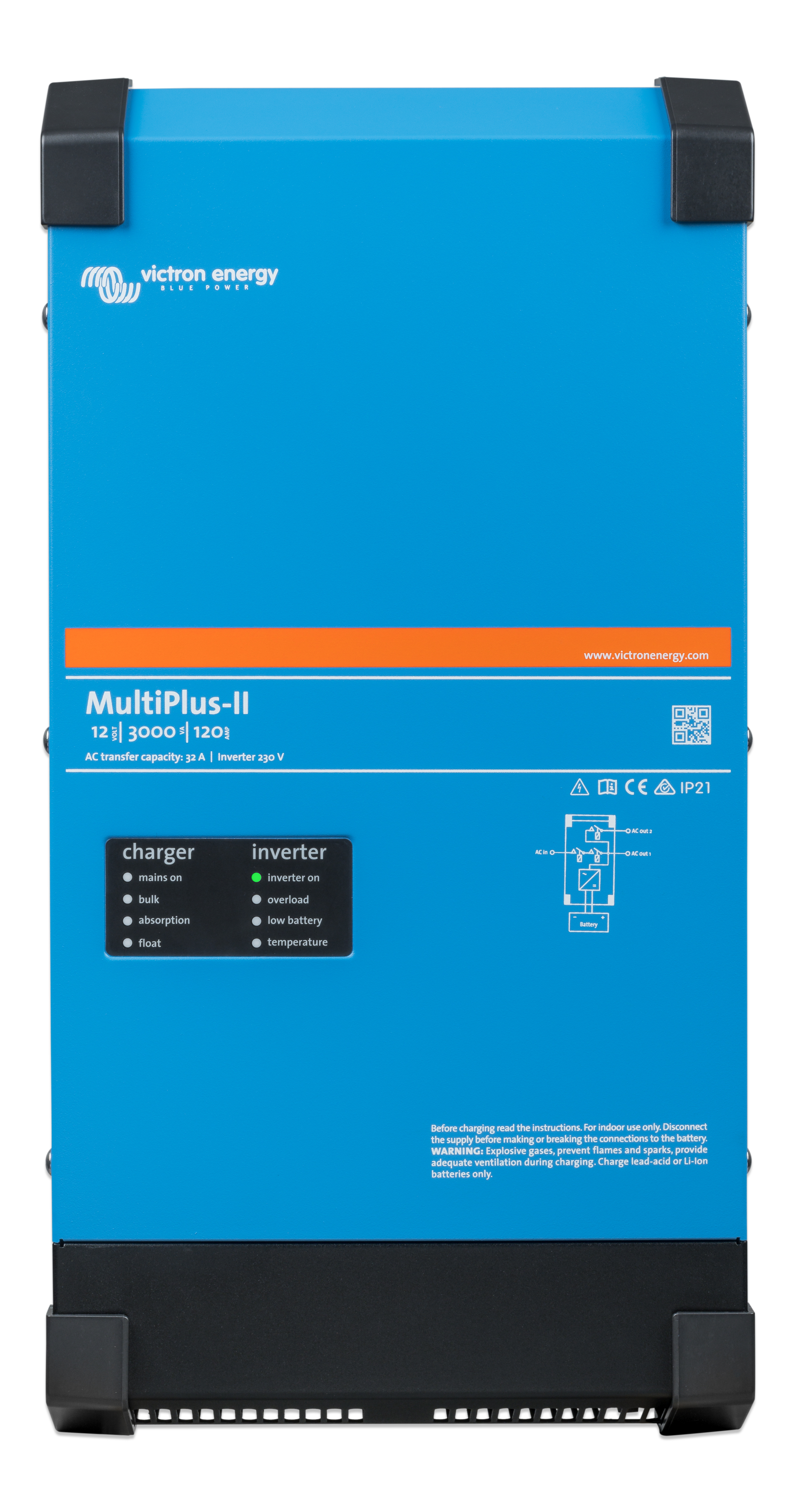

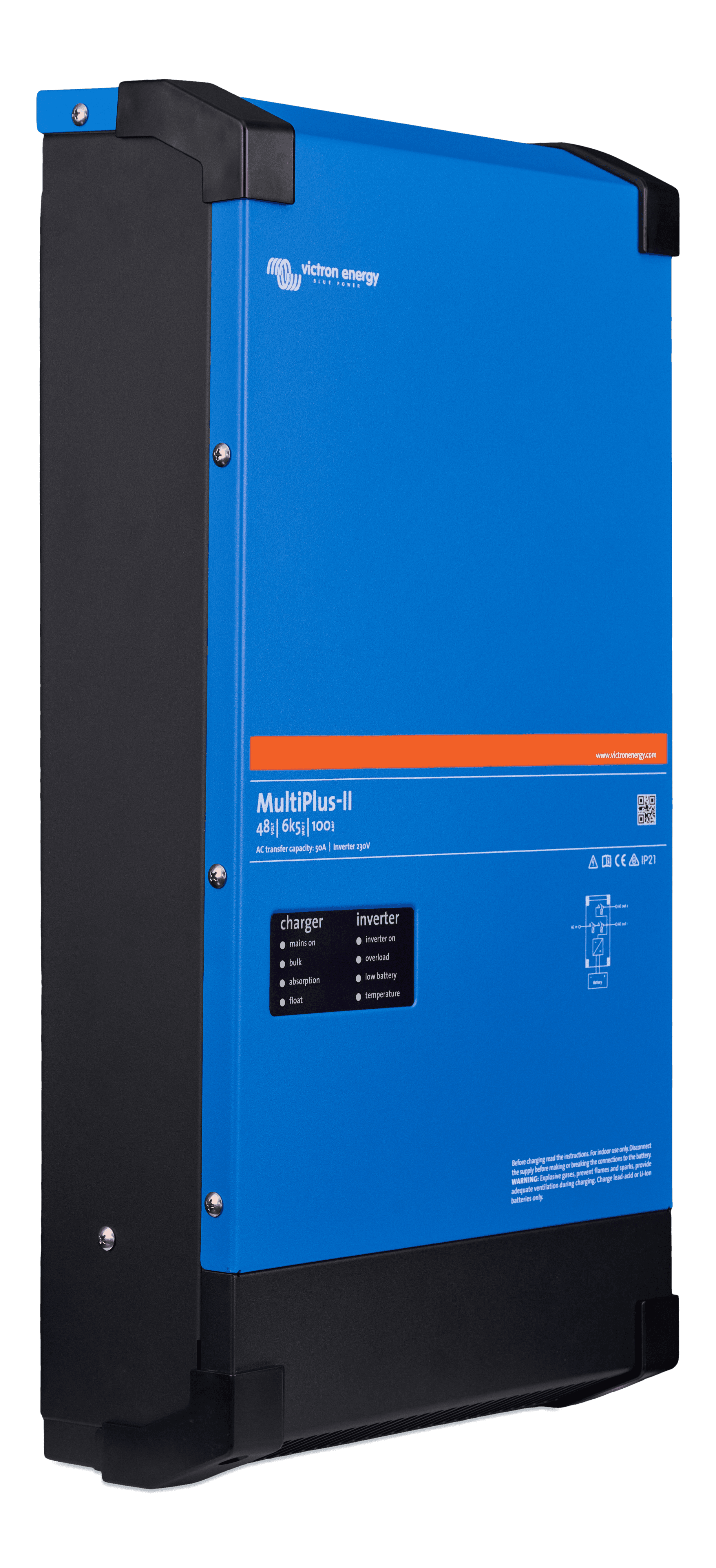

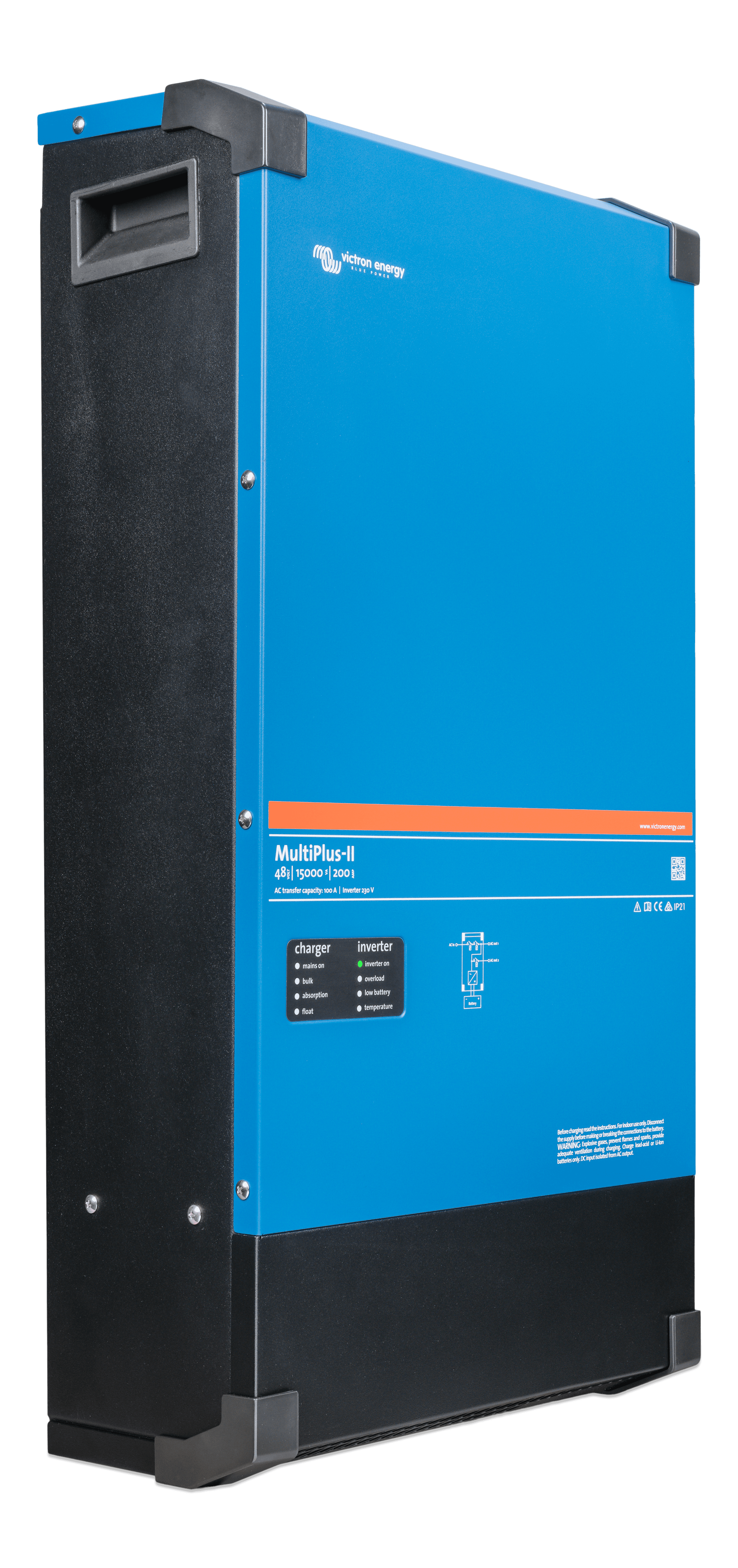

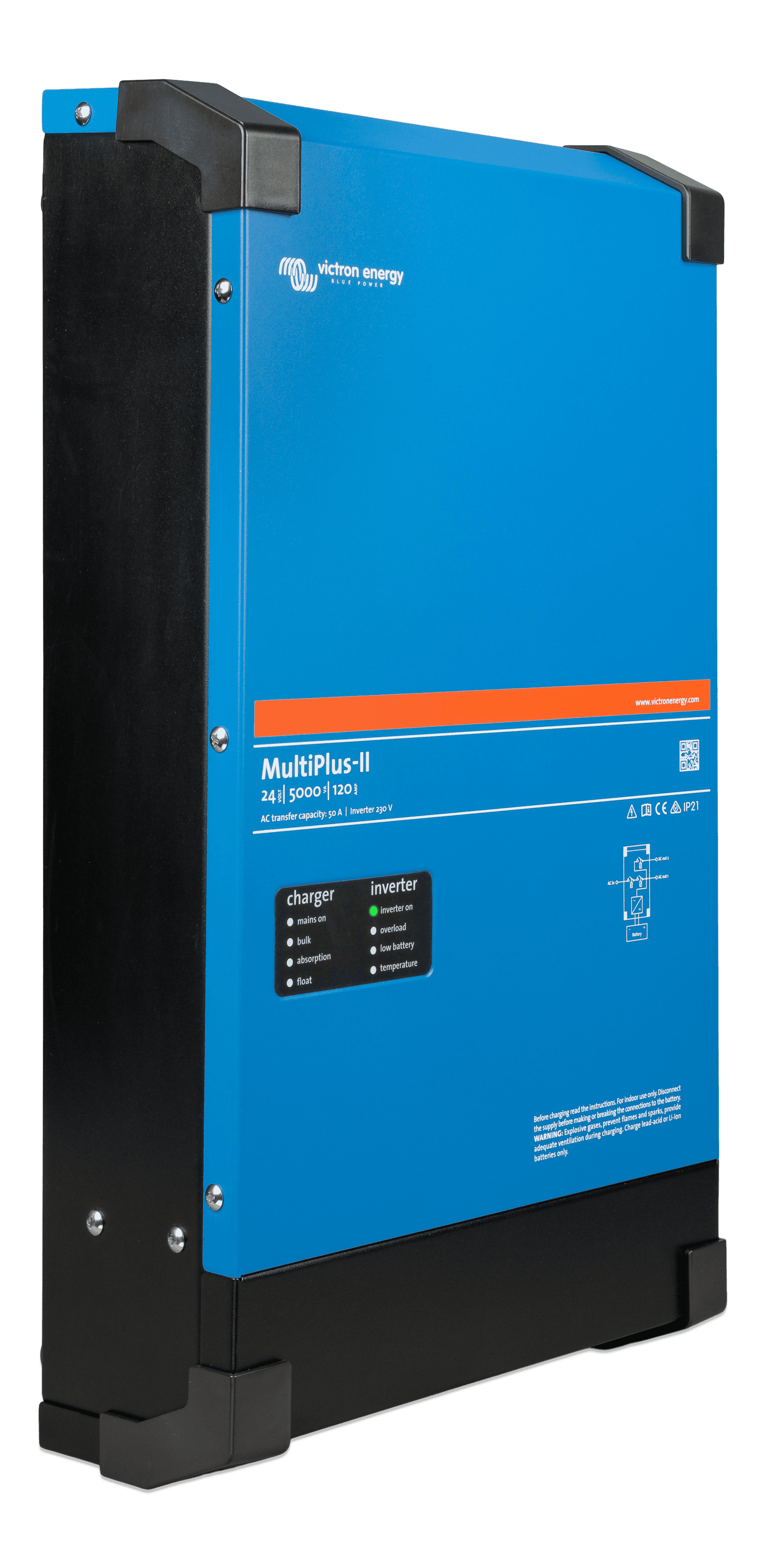

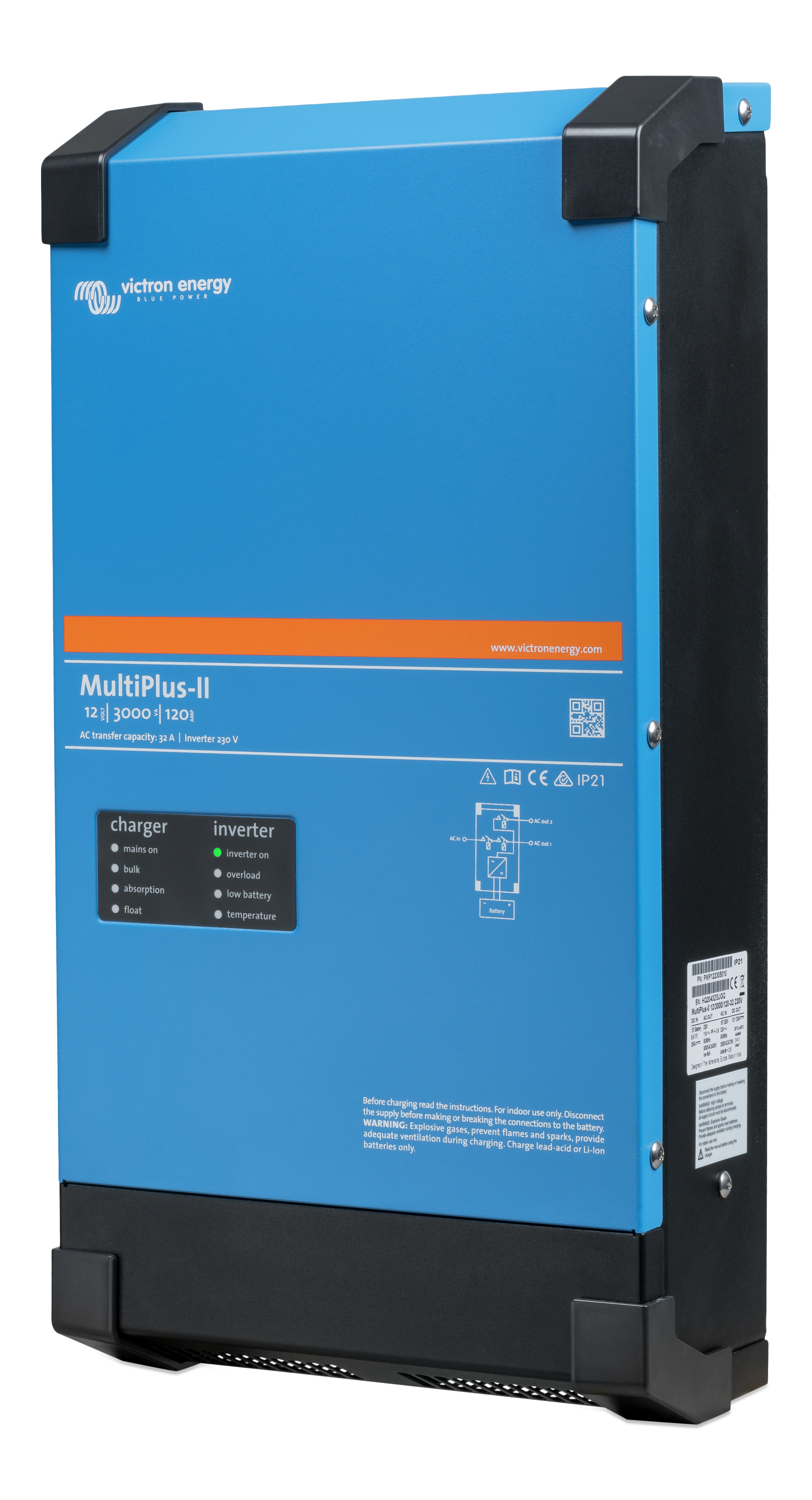

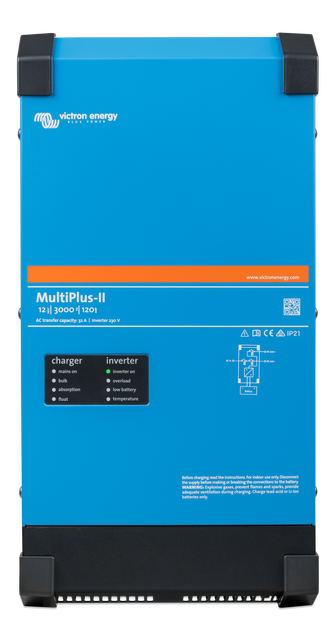

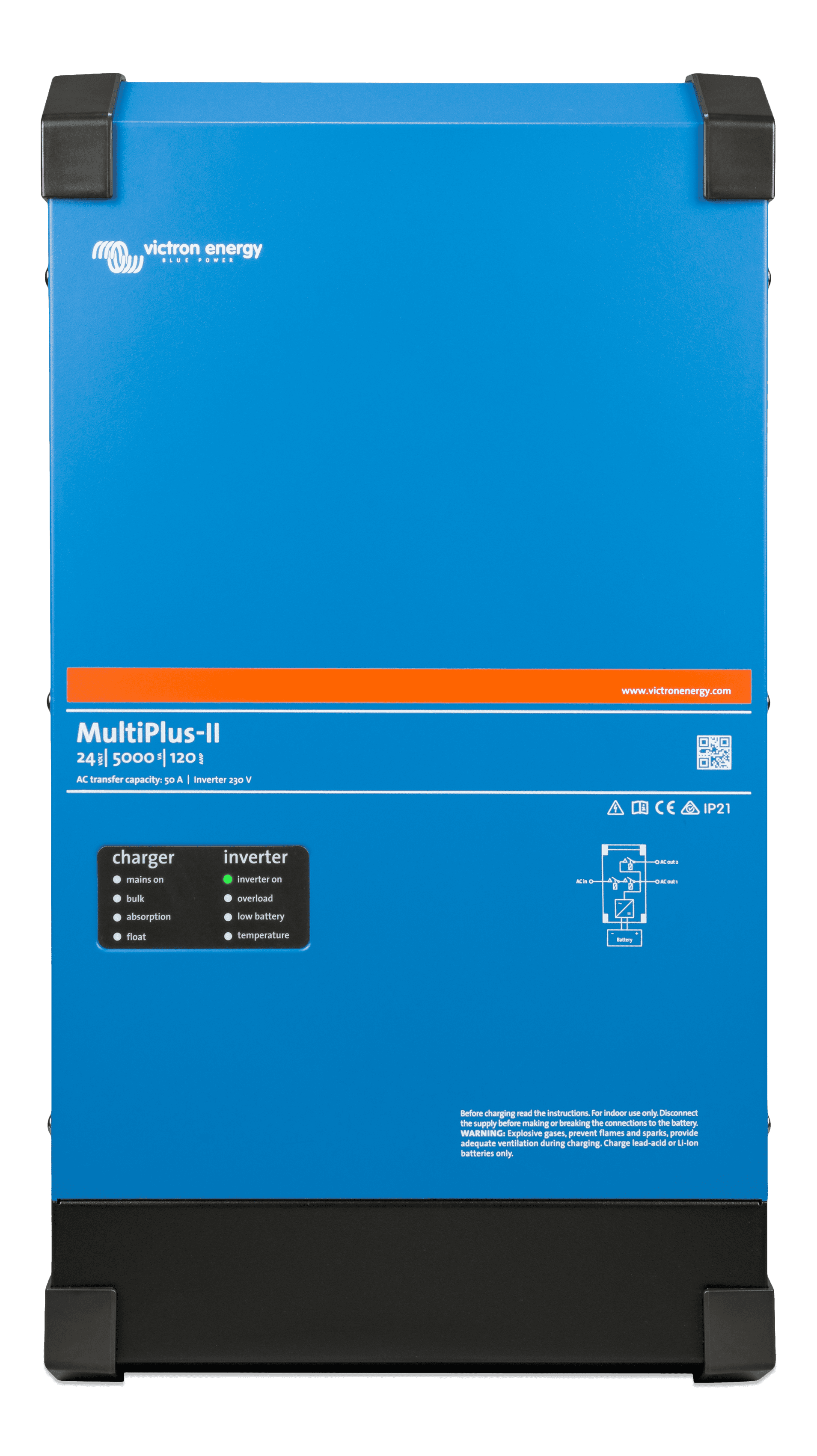

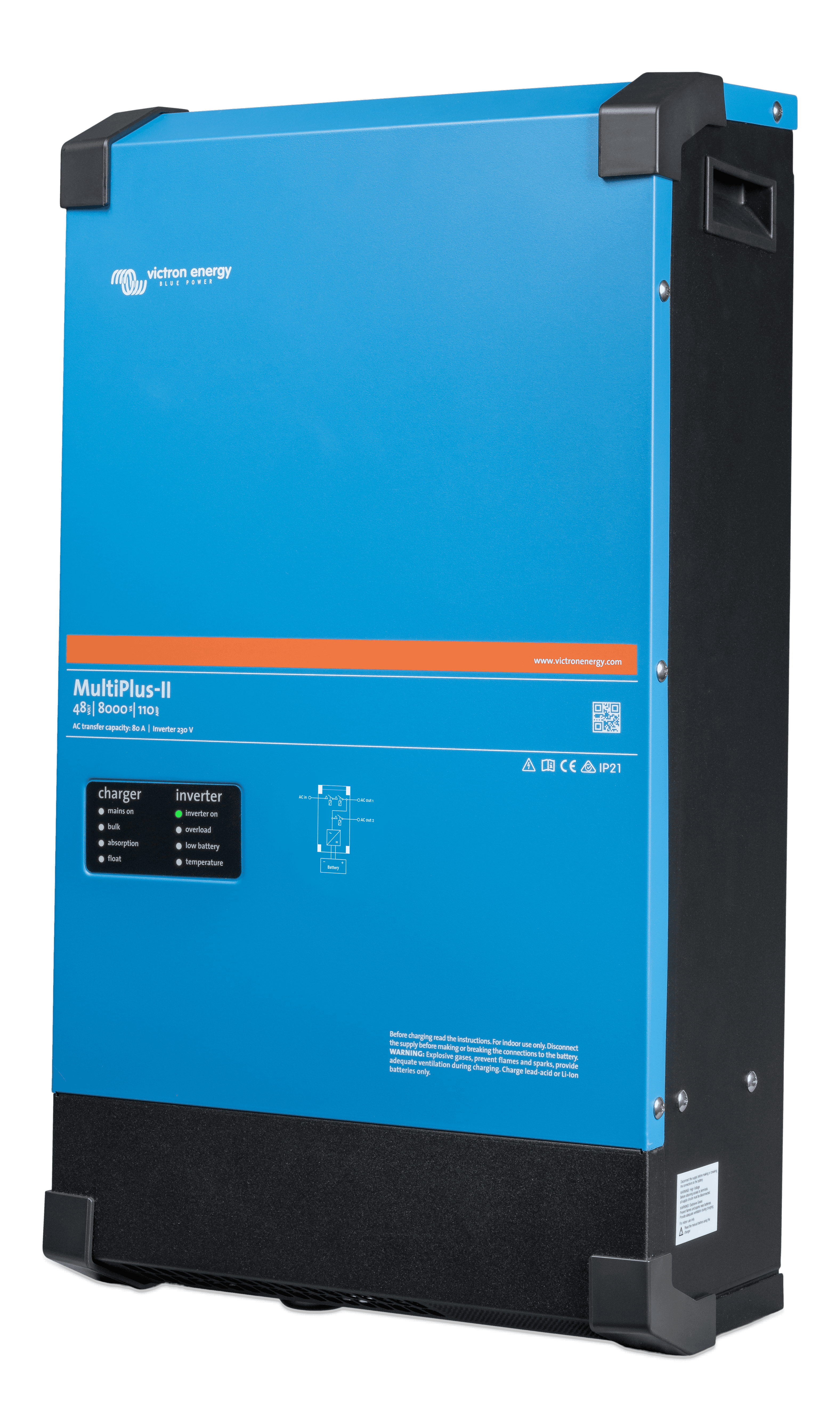

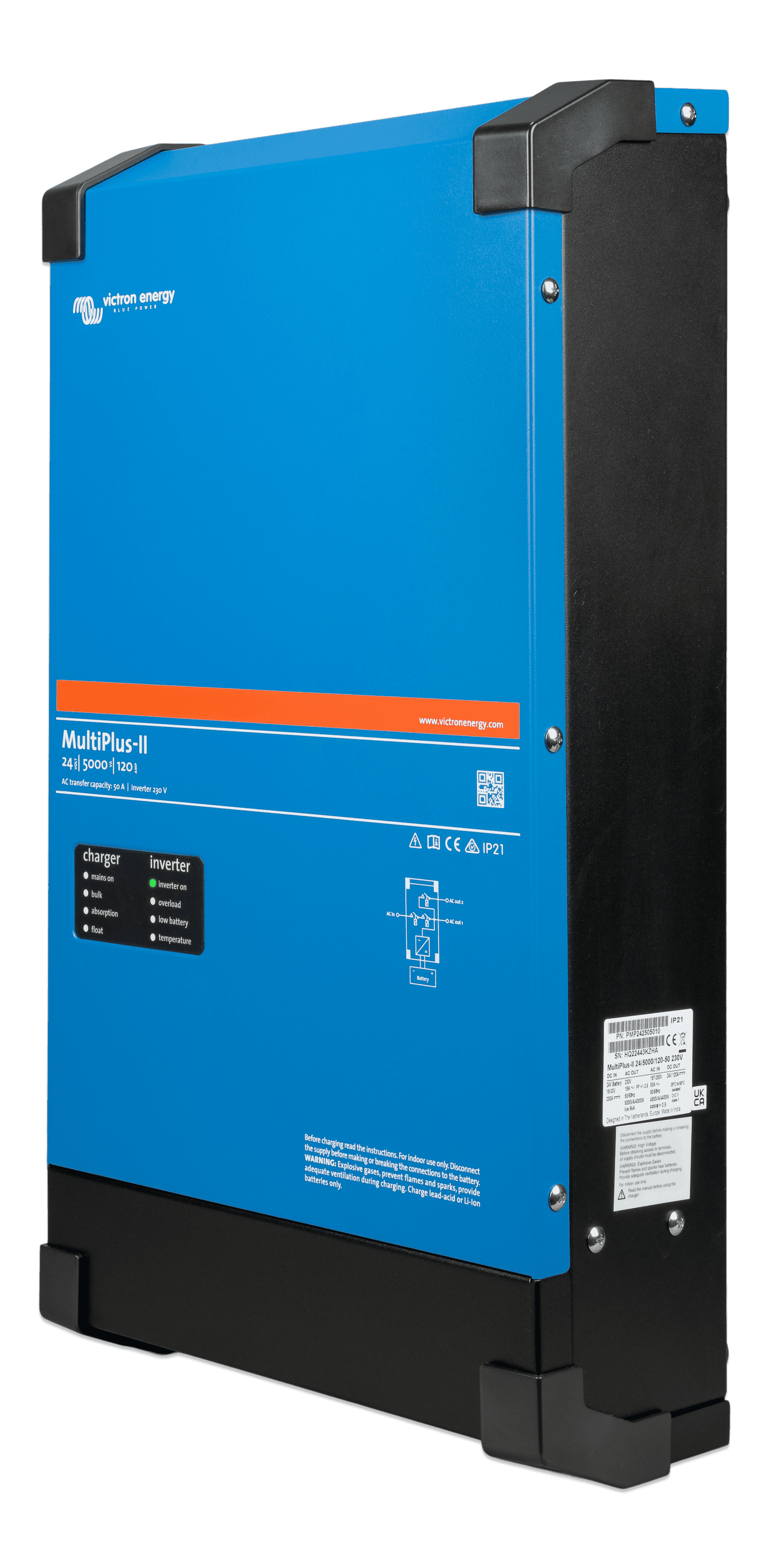

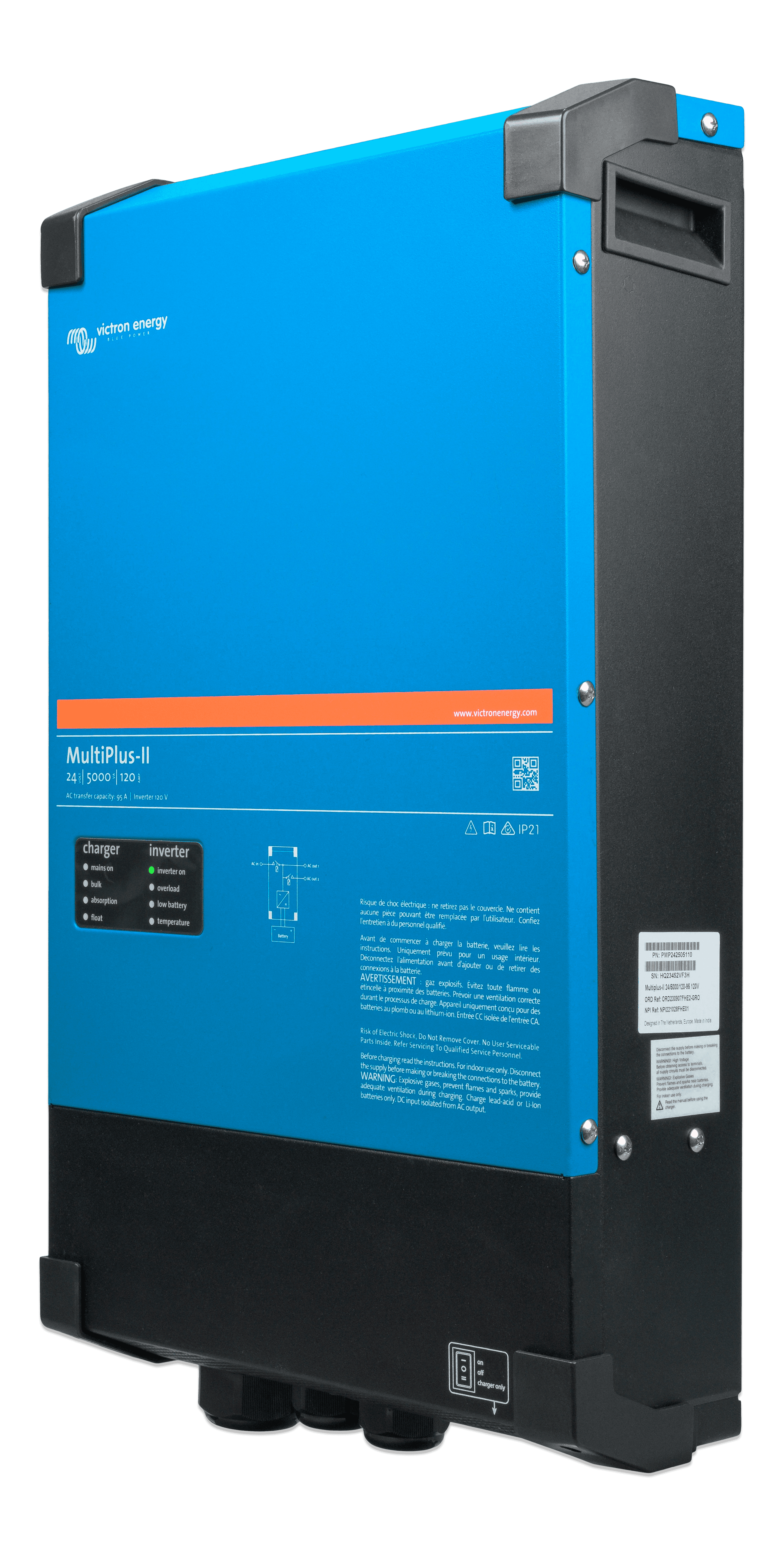

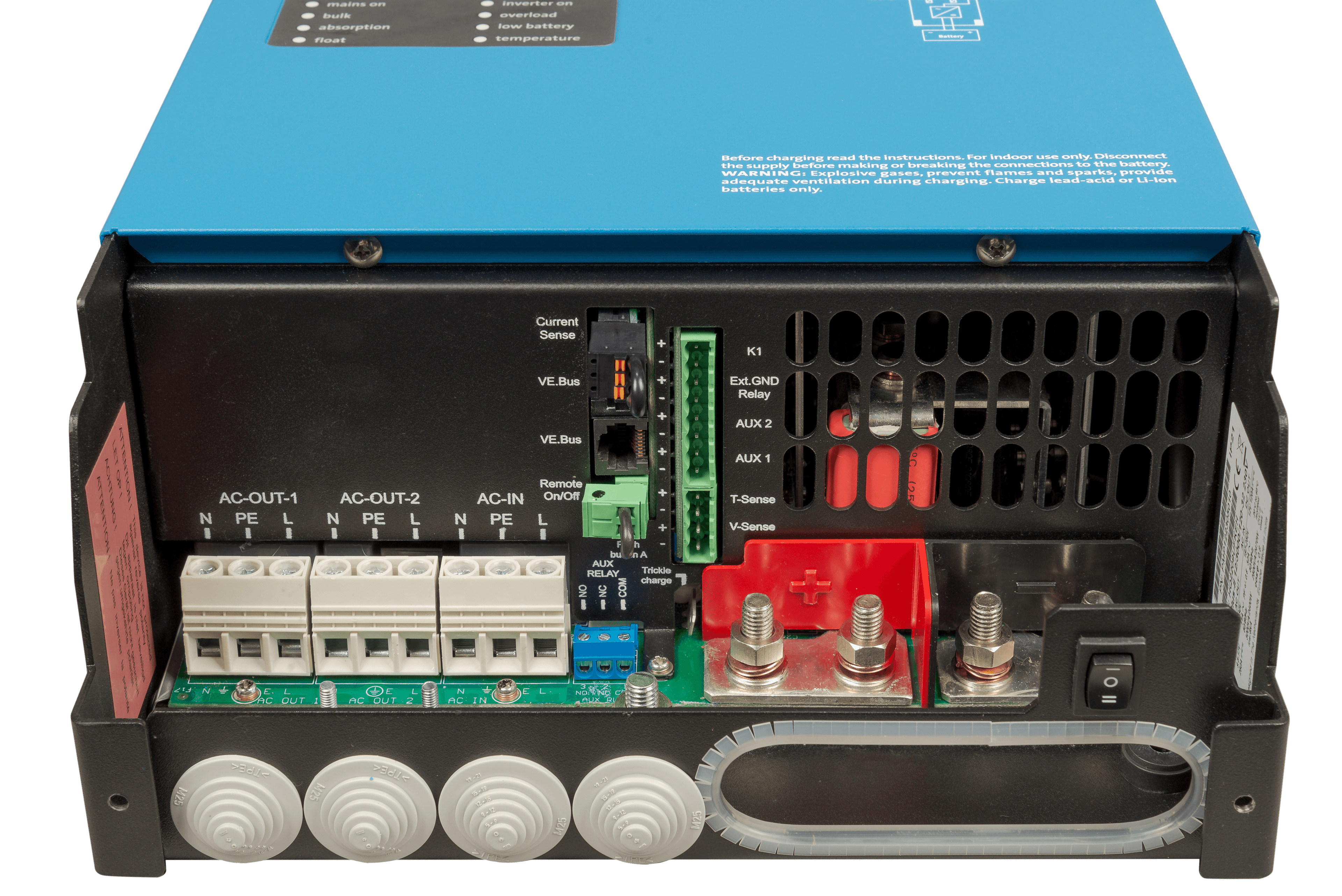

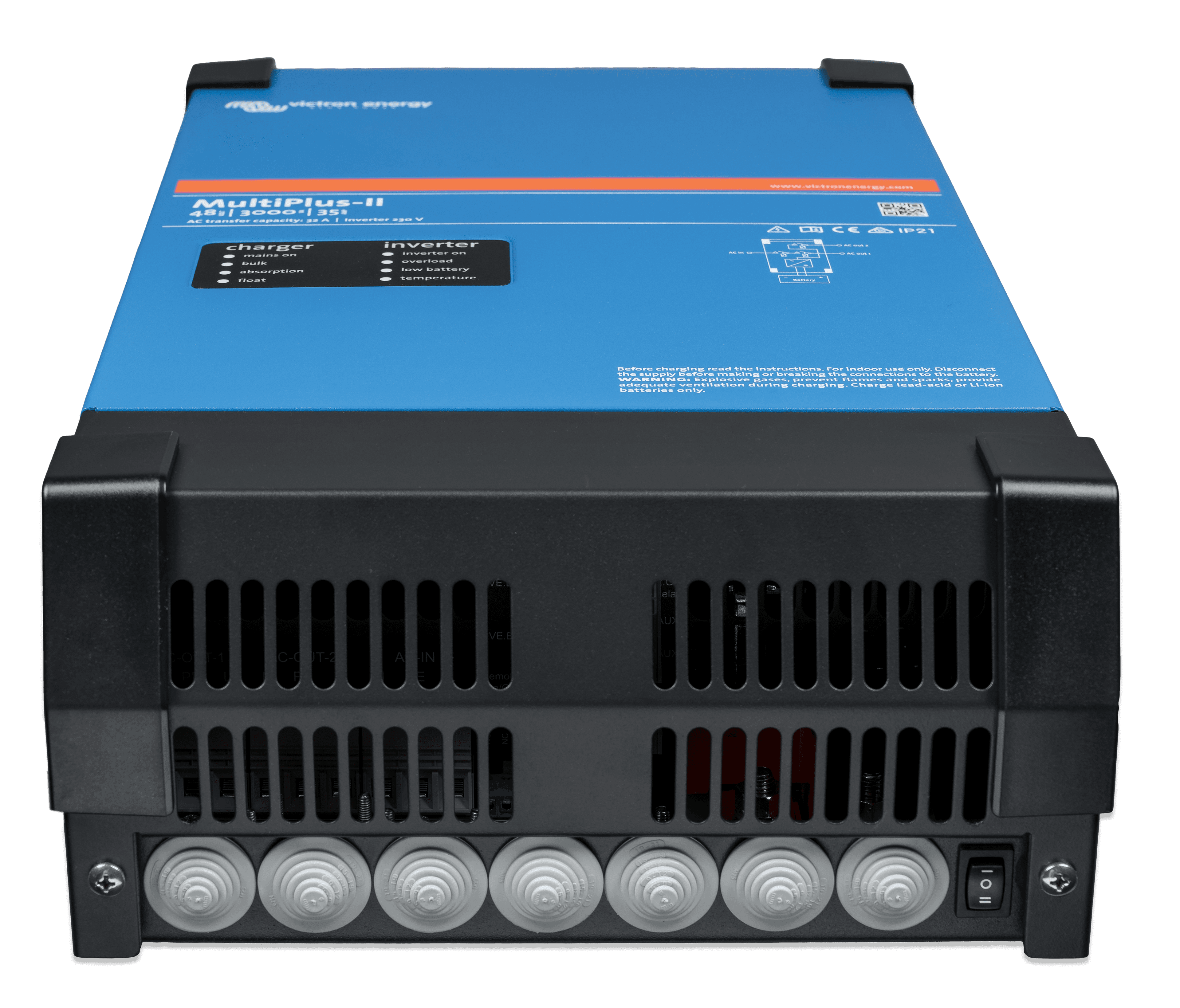

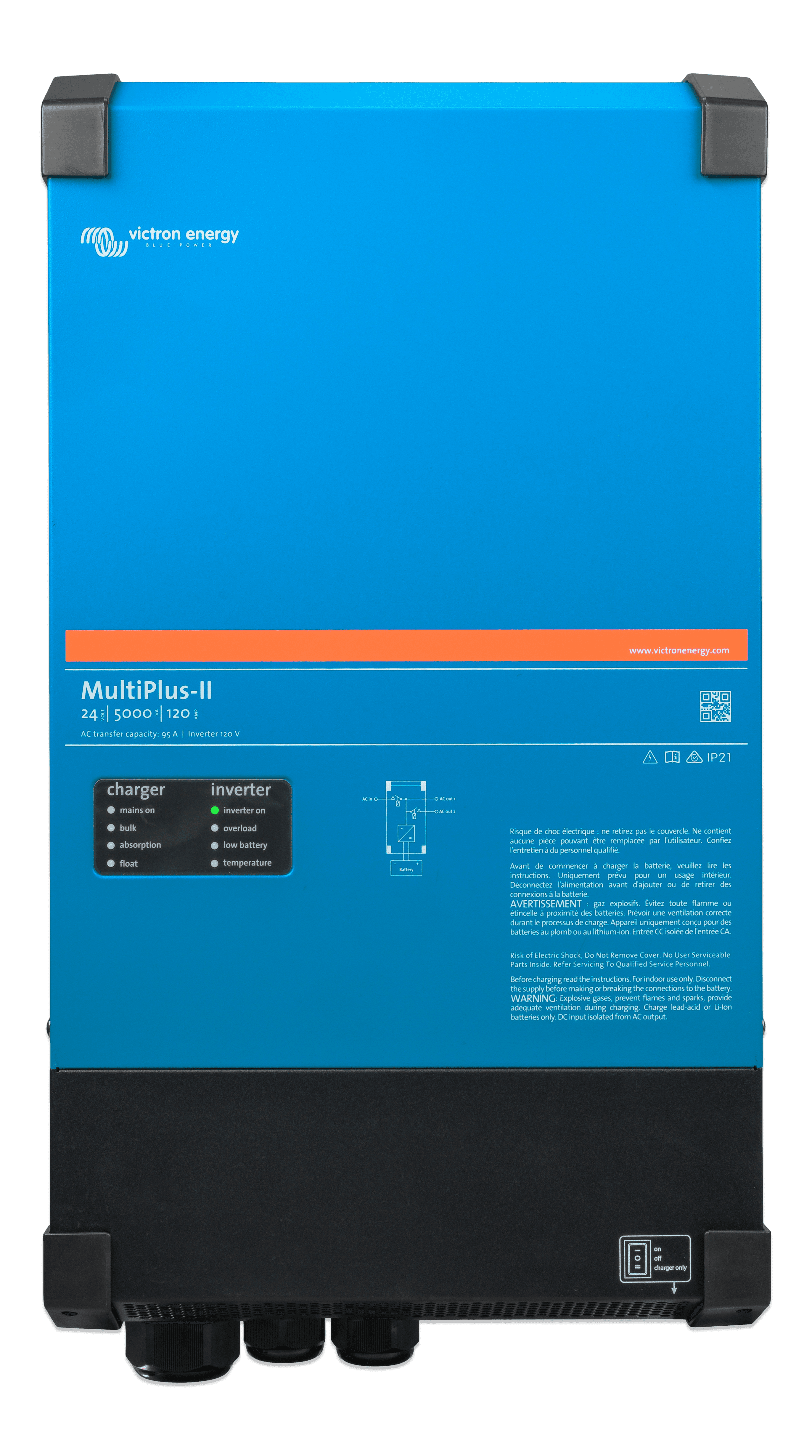

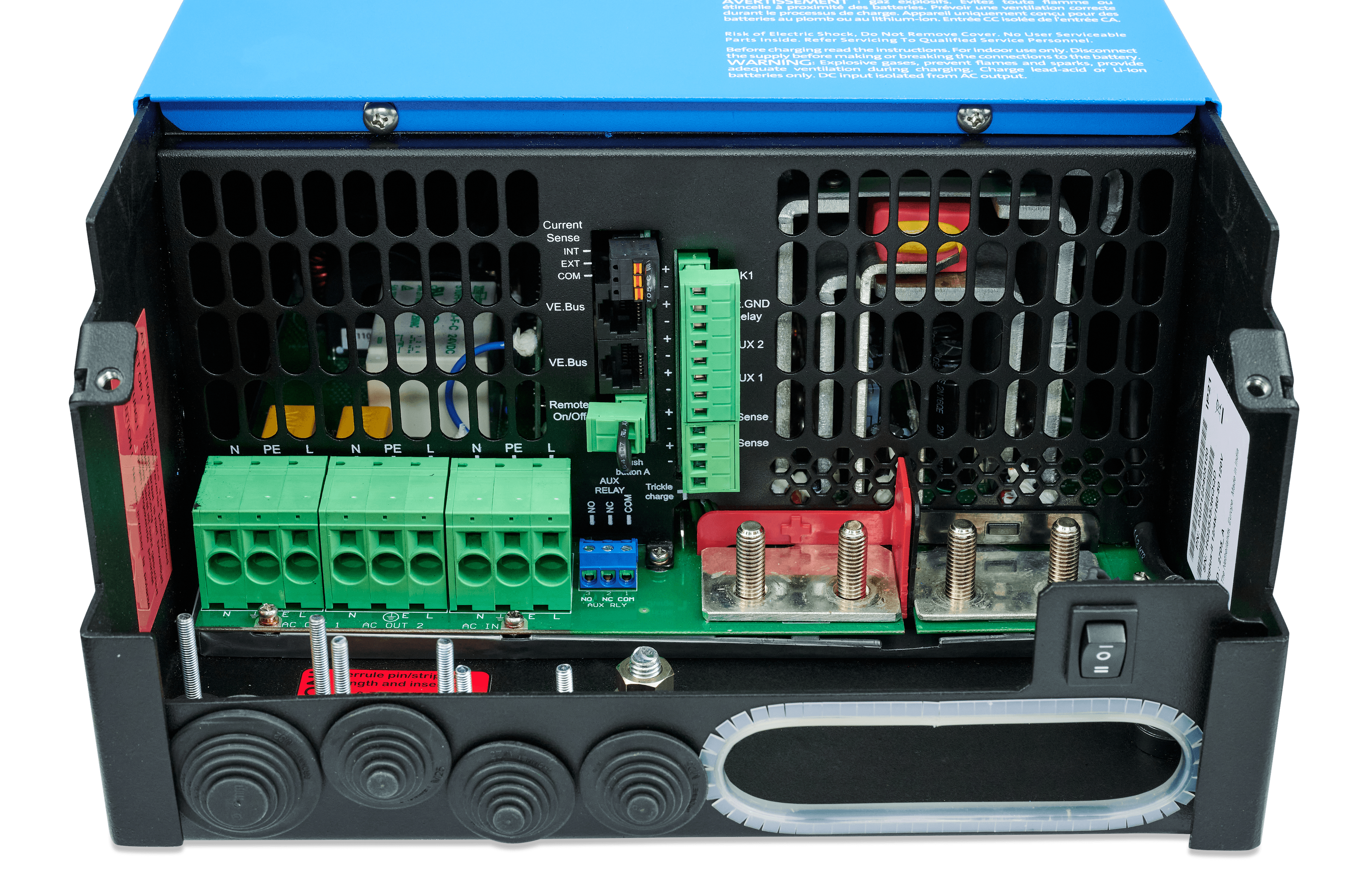

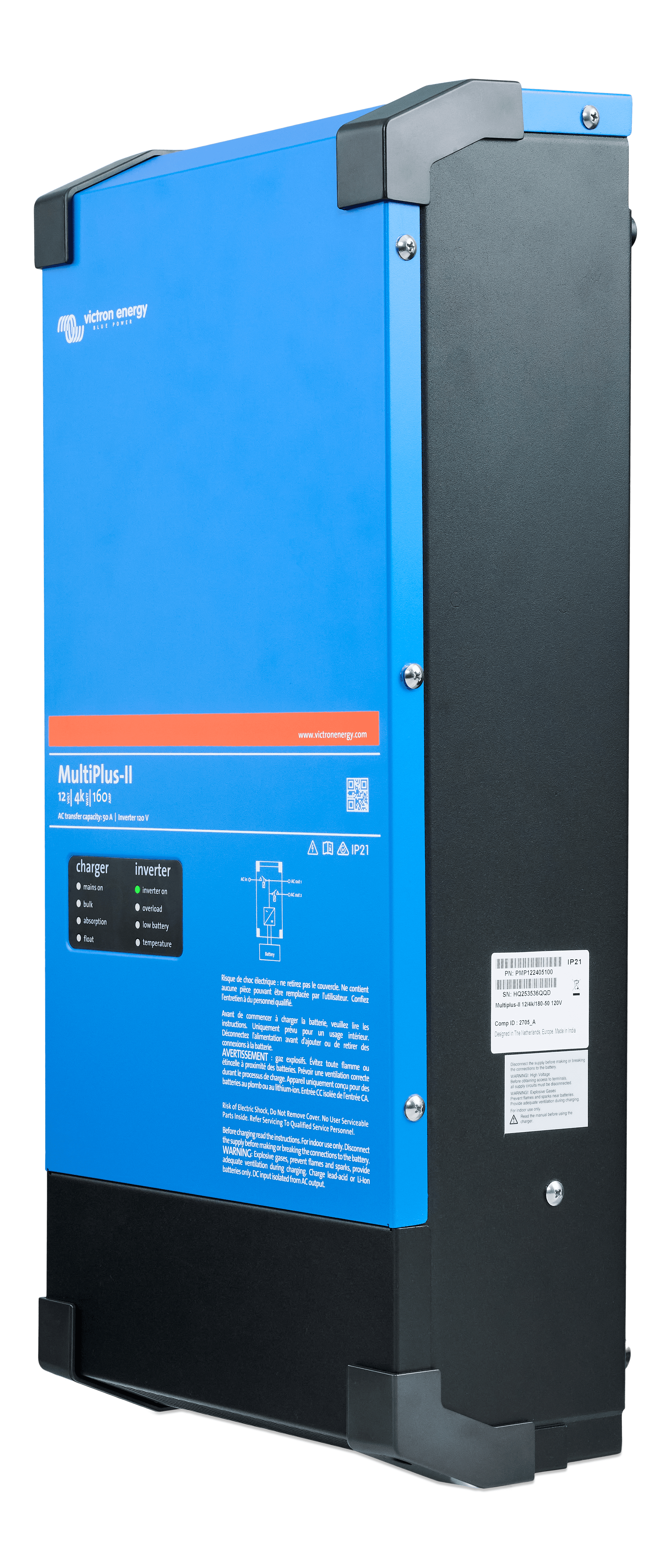

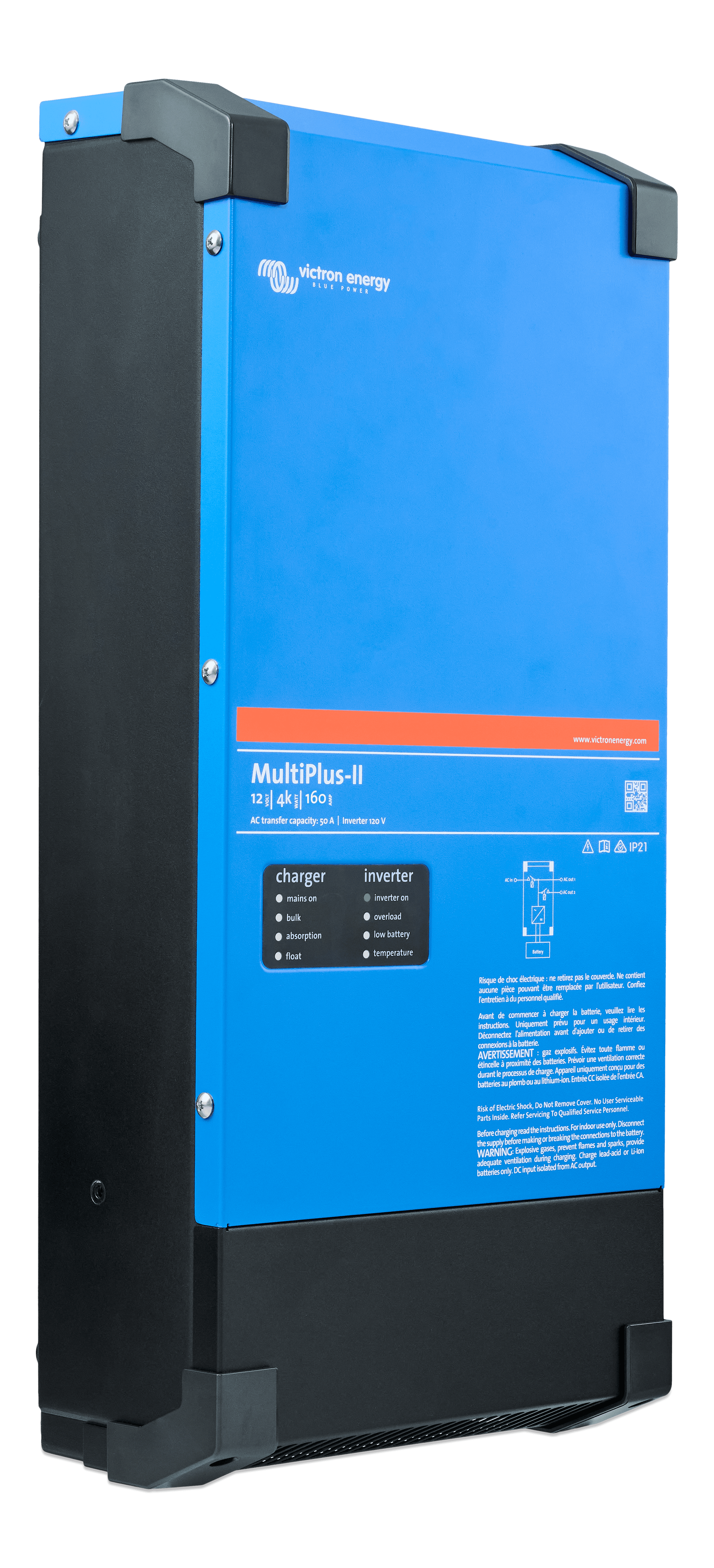

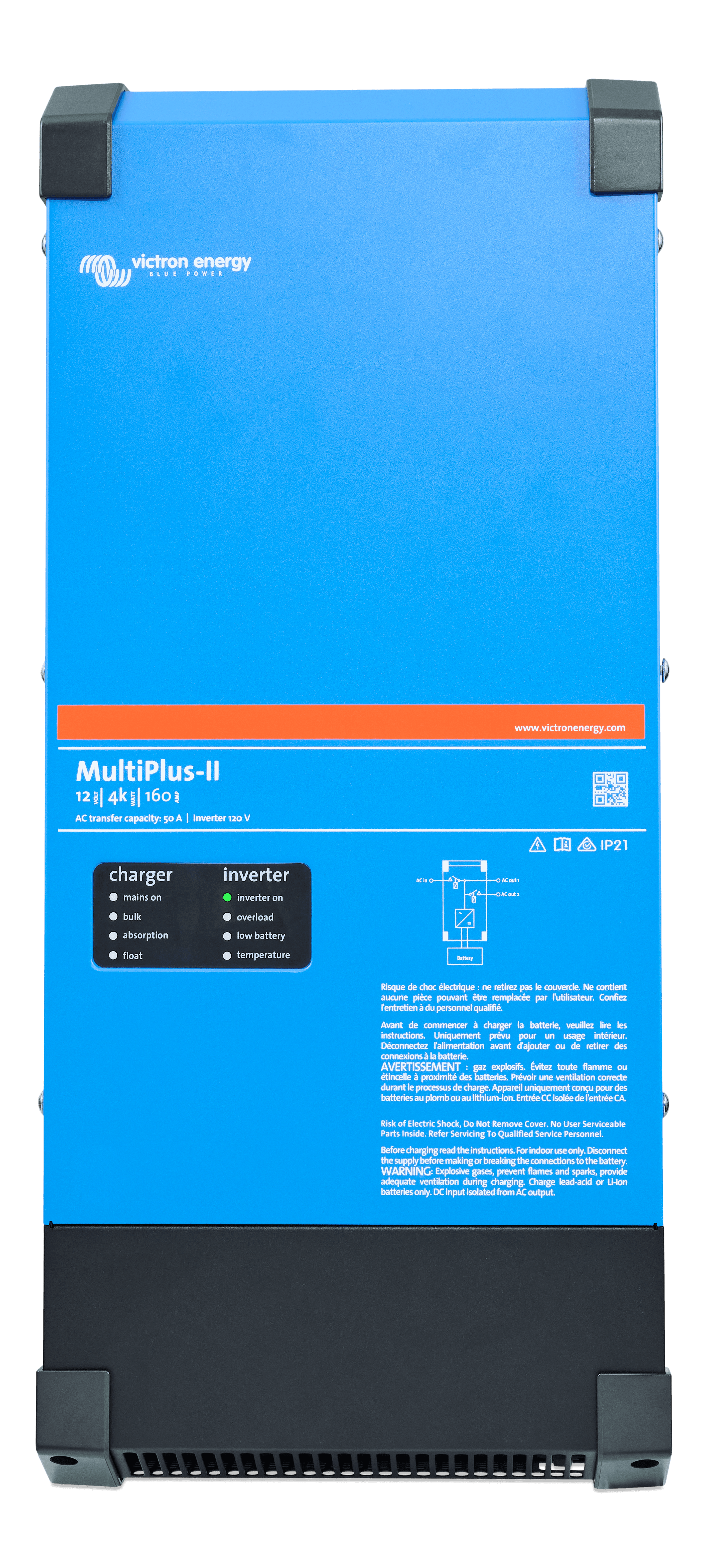

MultiPlus-II

MultiPlus-II是一款具备两路交流输出的多功能逆变器/充电器。该设备适用于专业船舶、游艇、车辆及陆地离网系统，同时能满足储能系统(ESS)配置所需的隔离性与冗余性要求。借助PowerControl功能，MultiPlus-II可防止电网或发电机过载；而PowerAssist功能则能在用电高峰期提升交流供电功率。若遇供电中断，逆变器可在毫秒级时间内完成切换，确保计算机及精密电子设备无中断持续运行。其电池充电器采用智能自适应算法，兼顾充电速度与效率，有效延长电池使用寿命。MultiPlus-II支持系统扩容需求：当系统需要升级时，可灵活配置为并联或三相运行模式。

注：这款产品有段时间曾使用“MultiGrid-II”这一名称。

MultiPlus-II

MultiPlus-II

MultiPlus-II

MultiPlus-II

Models:

3000 - 4k - 4k5 - 5000 - 6k5 - 8000 - 10000 - 15000

Year warranty

World-wide support

MultiPlus-II

MultiPlus-II

MultiPlus-II

MultiPlus-II

何处购买

需要建议吗？我们训练有素的经销商很乐意解答您无论大小的各种问题。

查找附近的经销商

支持

查看我们的支持资源，或联系您最初的经销商，以获取专门的支持、维修服务或提出保修申请。

支持

保修

详细了解我们行业领先的 5 年标准保修和全球维修服务。

保修

Warranty

及时了解最新信息

订阅我们的电子报

社交

关于 Victron

关于 Victron

Victron Energy

隐私政策

Cookie 偏好设置

cookie 的使用

使用条款

©Victron Energy 2026

产品规格

筛选器

26 Models

Model	MultiPlus-II 48/5000/70-50 230V	MultiPlus-II 48/3000/35-32 230V	MultiPlus-II 24/3000/70-32 230V	MultiPlus-II 48/3000/35-50 120V	MultiPlus-II 48/8000/110-100 230V	MultiPlus-II 12/3000/120-32 230V	MultiPlus-II 48/10000/140-100 230V	MultiPlus-II 24/5000/120-50 230V	MultiPlus-II 12/3000/120-50 120V	MultiPl-II24/3000/70-50 120V	MultiPlus-II 48/15000/200-100 230V	MultiPlus-II 12/3000/120-50 120V 50/60Hz (UL 458)	MultiPlus-II 48/3000/35-50 120V 50/60Hz (UL 1741 & 458)	MultiPlus-II 24/3000/70-50 120V 50/60Hz (UL 458)	MultiPlus-II 48/5000/70-95 120V	MultiPlus-II 24/5000/120-95 120V	MultiPlus-II 12/5000/220-50 230V	MultiPlus-II 48/4k5/55-32 230V	MultiPlus-II 48/6k5/100-50 230V	MultiPlus-II 48/5000/70-95 120V 50/60Hz	MultiPlus-II 48/5000/70-95 120V (UL 1741 & 458)	MultiPlus-II 12/4k/160-32 230V	MultiPlus-II 12/4k/160-50 120V 50/60Hz	MultiPlus-II 12/3000/120-50 120V 50/60Hz	MultiPlus-II 12/4k/160-50 120V	MultiPlus-II 24/3000/70-32 230V GX

Model

文档

数据手册手册

数据手册手册

数据手册手册

数据手册手册

数据手册手册

数据手册手册

数据手册手册

数据手册手册

数据手册手册

数据手册

-

-

-

-

货号

PMP482505010
PMP482505012

PMP482305010
PMP482305012

PMP242305010

PMP482305100

PMP482805000

PMP122305010

PMP483105000

PMP242505010

PMP122305120

PMP242305100

PMP483150000

PMP122305122

PMP482305102

PMP242305102

PMP482505110

PMP242505110

PMP122505012

PMP482405012

PMP482605012

PMP482505300

PMP482505120

PMP122405010

PMP122405110

PMP122305121

PMP122405100

PMP242306002

PowerControl & PowerAssist 功率控制与功率辅助

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

传输开关

50 A

32 A

32 A

50 A

100 A

32 A

100 A

50 A

50 A

50 A

100 A

50 A

50 A

50 A

95 A

95 A

50 A

32 A

50 A

95 A

95 A

32 A

50 A

50 A

50 A

32 A

逆变器

25 C 时的连续输出功率 (3)

5,000 VA

3,000 VA

3,000 VA

3,000 VA

8,000 VA

3,000 VA

10,000 VA

5,000 VA

3,000 VA

3,000 VA

15,000 VA

3,000 VA

3,000 VA

3,000 VA

5,000 VA

5,000 VA

5,000 VA

-

-

5,000 VA

5,000 VA

-

-

3,000 VA

-

3,000 VA

25 C 时的连续输出功率

4,000 W

2,400 W

2,400 W

2,400 W

6,400 W

2,400 W

8,000 W

4,000 W

2,400 W

2,400 W

12,000 W

2,400 W

2,400 W

2,400 W

4,000 W

4,000 W

4,000 W

4,000 W

6,000 W

4,000 W

4,000 W

3,400 W

3,400 W

2,400 W

3,400 W

2,400 W

峰值功率

9,000 W

5,500 W

5,500 W

5,500 W

15,000 W

5,500 W

18,000 W

9,000 W

5,500 W

5,500 W

27,000 W

5,500 W

5,500 W

5,500 W

9,000 W

9,000 W

9,000 W

7,000 W

11,000 W

9,000 W

9,000 W

6,000 W

6,000 W

5,500 W

6,000 W

5,500 W

充电器

最大电池充电电流

70 A

35 A

70 A

35 A

110 A

120 A

140 A

120 A

120 A

70 A

200 A

120 A

35 A

70 A

70 A

120 A

220 A

55 A

100 A

70 A

70 A

160 A

160 A

120 A

160 A

70 A

通用

VE.Bus 通信端口

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

Two RJ45 terminals

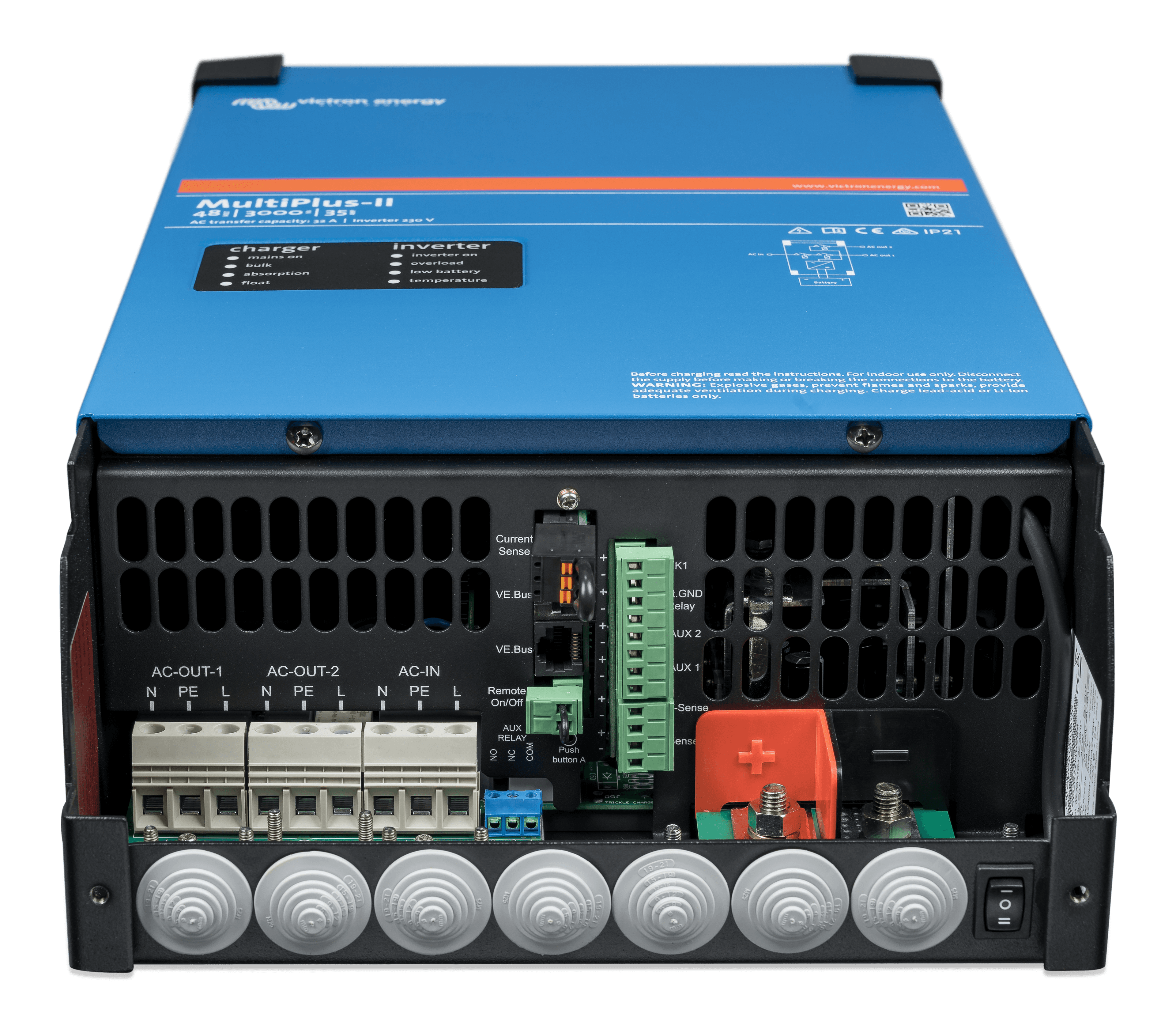

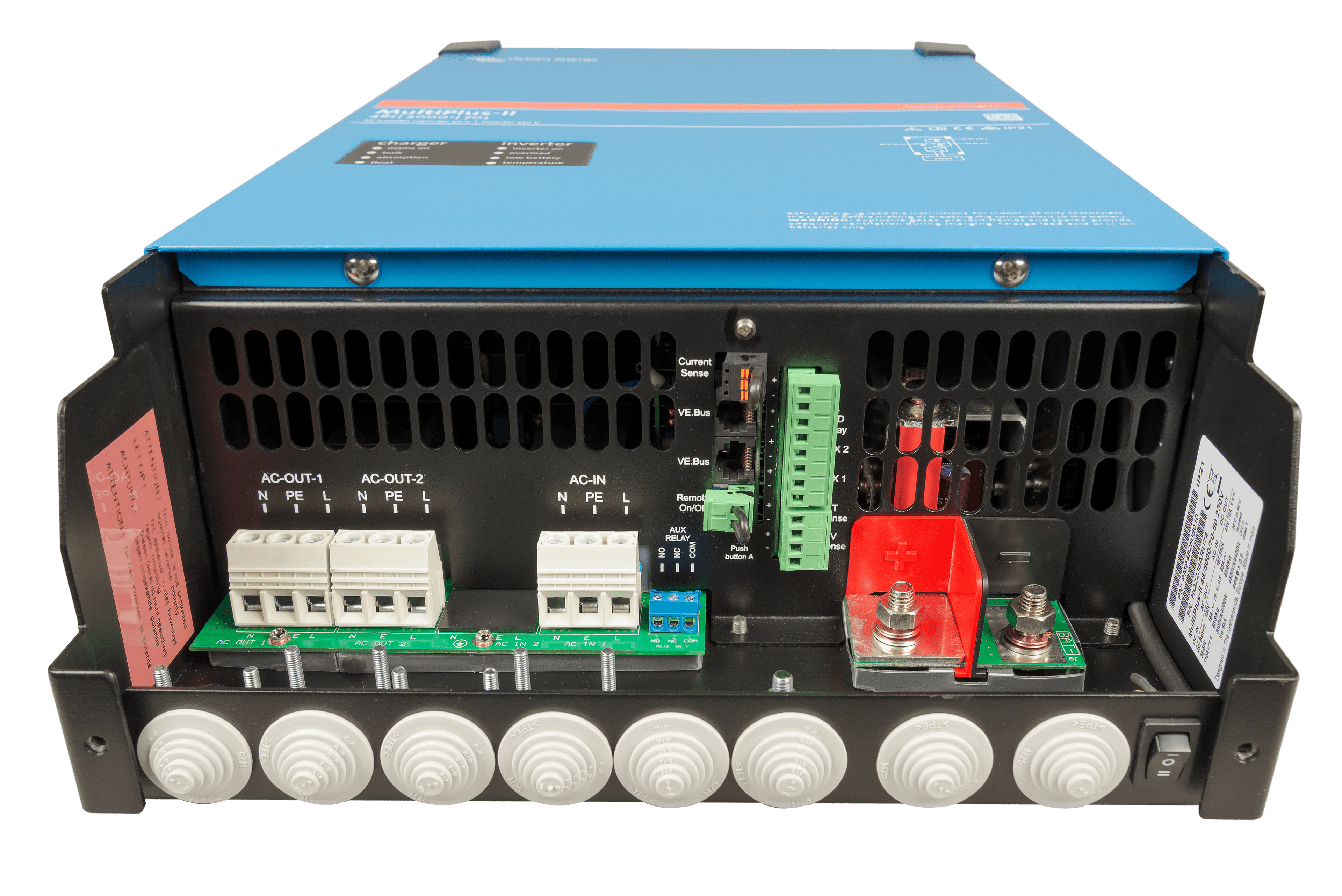

外壳

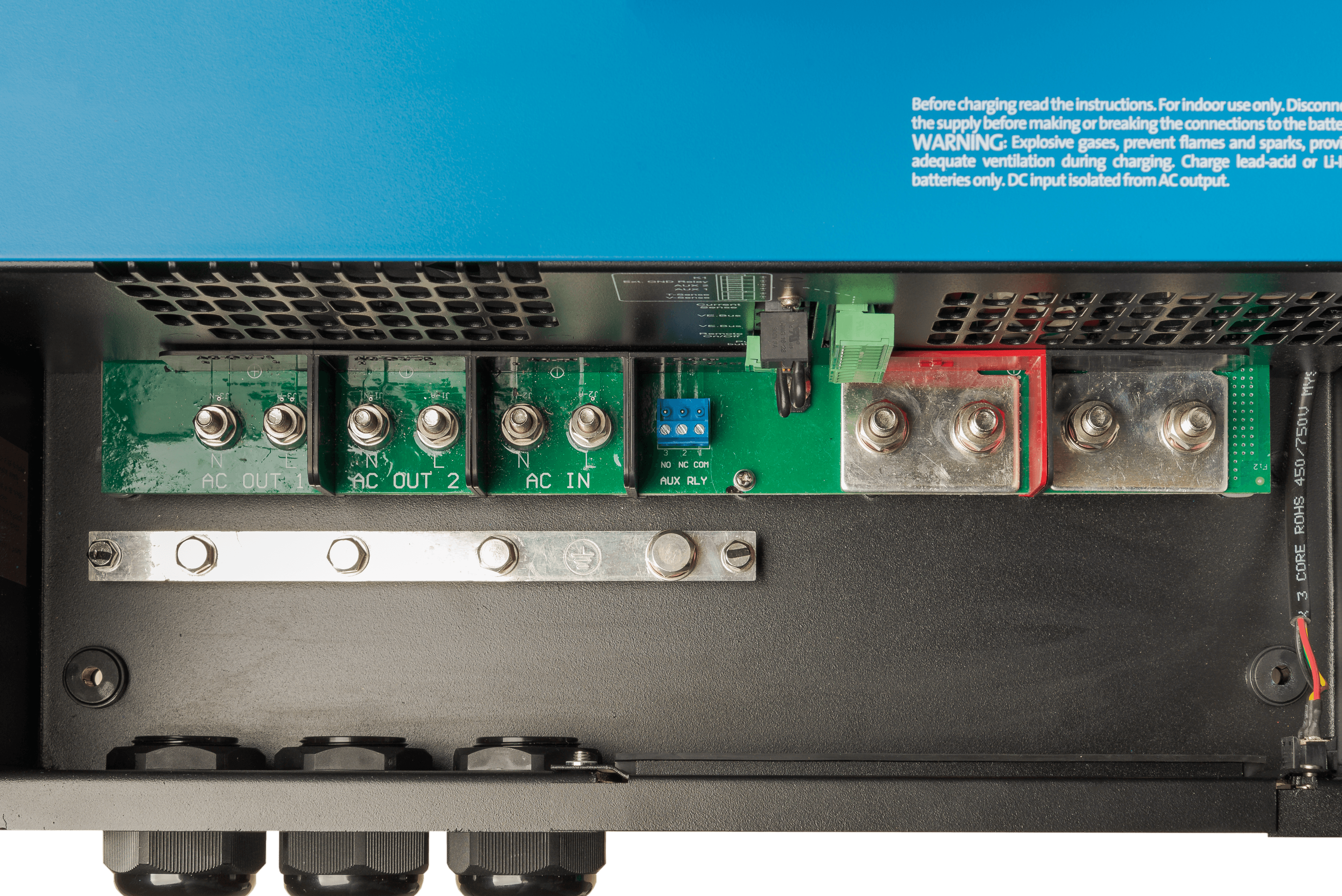

电池连接

M8 bolts

M8 bolts

M8 bolts

M8 bolts

M8 bolts (two for positive and two for negative connection)

M8 bolts

M8 bolts (two for positive and two for negative connection)

M8 bolts

M8 bolts

M8 bolts

M8 bolts (two for positive and two for negative connection)

M8 bolts

M8 bolts

M8 bolts

M8 bolts

M8 bolts

M8 bolts

M8 bolts

M8 bolts

M8 bolts

M8 bolts

M8 bolts (two for positive and two for negative connection)

M8 bolts (two for positive and two for negative connection)

M8 bolts (two for positive and two for negative connection)

M8 bolts

230 VAC 连接

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

M6 bolts

Screw terminals 13 mm² (6 AWG)

M6 bolts

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

M6 bolts

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

Screw terminals 35 mm² (2 AWG)

Screw terminals 35 mm² (2 AWG)

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

Screw terminals 35 mm² (2 AWG)

Screw terminals 35 mm² (2 AWG)

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

Screw terminals 13 mm² (6 AWG)

尺寸 (高x宽x深) 毫米

565 x 320 x 149

499 x 268 x 141

499 x 268 x 141

572 x 277 x 147

642 x 363 x 206

546 x 275 x 147

677 x 363 x 206

607 x 330 x 149

578 x 277 x 148

536 x 277 x 147

810 x 405 x 217

578 x 277 x 148

572 x 277 x 147

536 x 277 x 147

676 x 330 x 164

627 x 350 x 150

702 x 345 x 152

590 x 275 x 149

644 x 320 x 150

536 x 277 x 147

676 x 330 x 164

576 x 276 x 164

631 x 277 x 164

578 x 277 x 148

631 x 277 x 164

546 x 275 x 147

重量

30 kg

19 kg

19 kg

19 kg

42 kg

19 kg

49 kg

30 kg

19 kg

19 kg

80 kg

19 kg

19 kg

19 kg

32 kg

29 kg

33 kg

22 kg

29 kg

32 kg

32 kg

22 kg

22 kg

19 kg

22 kg

19 kg
